23285 HM Grade Direct-Fit Catalytic Converter Fits Select Dodge Models
InfoVehicle Info Needed
MAGNAFLOWPART NUMBER: 642-23285

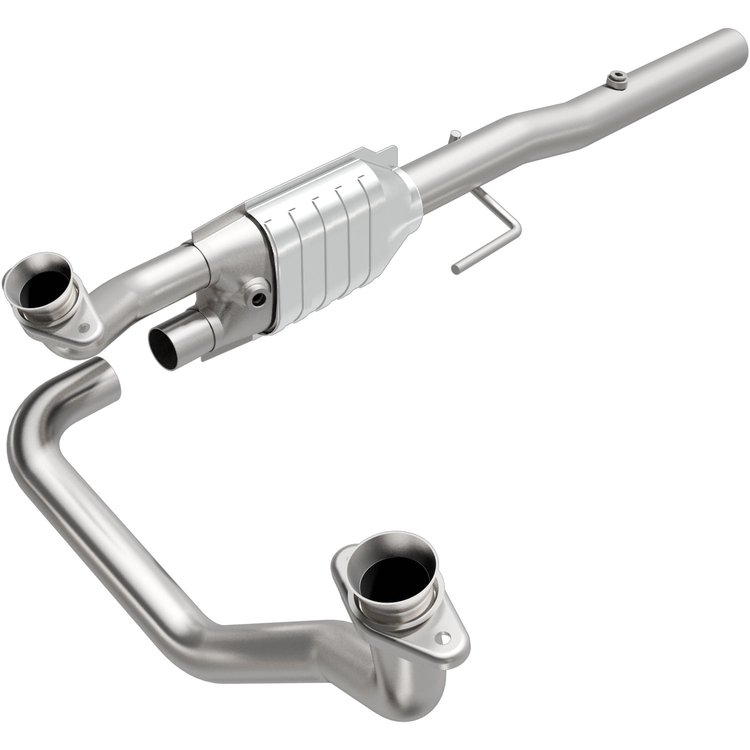

23285 HM Grade Direct-Fit Catalytic Converter Fits Select Dodge Models

$38000
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Dodge/Chrysler
HM Grade Direct-Fit Catalytic Converter
  • Fits Select Dodge Models
  • Stainless Steel

    MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23285 helps keep the check engine light off. DIY installation is easy with the proper tools (no cutting or welding required). With features including mandrel-bent tubing to eliminate flow restrictions and stainless steel construction to resist corrosion, you can have confidence in the quality of this catalytic converter. Using state-of-the-art 3D scanning systems in the design process, the MagnaFlow metrology department ensures this new part to fit and function like the original equipment. This direct-fit catalytic converter is designed to fit the 1994-2001 Dodge Ram 1500, 1994-2002 Dodge Ram 2500, and additional vehicles. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.

    Magnaflow 23285 HM Grade Direct-Fit Catalytic Converter Features:

    • Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
    • Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
    • OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
    • High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
    • Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
    • Simplifies installation with essential gaskets and hardware being included in the box
    • Durable 308 stainless steel MIG welds
  • Part TypeCatalytic Converter
    BrandMAGNAFLOW
    Package Height8.0
    Package Width22.0
    Package Length48.0
    Weight22.0 PG
    Part CategoryPerformance Parts
    Converter Style3-way
    Outlet QuantityOne
    EmissionNon-California (49-State)
    Catalytic Converter FormatPre-Catalytic Converter and Main Catalytic Converter
    Inlet Size (In.)2
    Heat ShieldYes
    Heat Shield AttachedNo
    Air TubeNo
    Body Length12 in (304.8 mm)
    Inlet Diameter2 in (50.8 mm)
    Inlet QuantityTwo
    Case MaterialStainless steel
    Universal Or Specific FitSpecific
    Outlet Size2.5 in (63.5 mm)
    Cat Converter Air Tube AdapterNot Air Tube Kit Adaptable
    Converter Body Size6.375 in. OD
    Oxygen Sensor LocationPre and Post Converter
    Body SizeOEM
    Outlet Diameter2.5 in (63.5 mm)
    QuantitySold individually
    Overall Length50.875 in (1292.2 mm)
    Core Substrate MaterialCeramic
    MaterialStainless Steel
    Inlet AttachmentStock flange
    California LegalNo
    California Air Board ApprovedNo
    Substrate MaterialCeramic honeycomb
    Outlet AttachmentSlip fit
    Exhaust Pipe MaterialStainless Steel
    Exhaust Component Mount TypeUses Factory Hangers
    Recommended UseConverter
    Part FitmentDirect Fit
    Vendor Part Number23285
    Package Qty1
    Package TypeEA
