MAGNAFLOWPART NUMBER: 642-458063

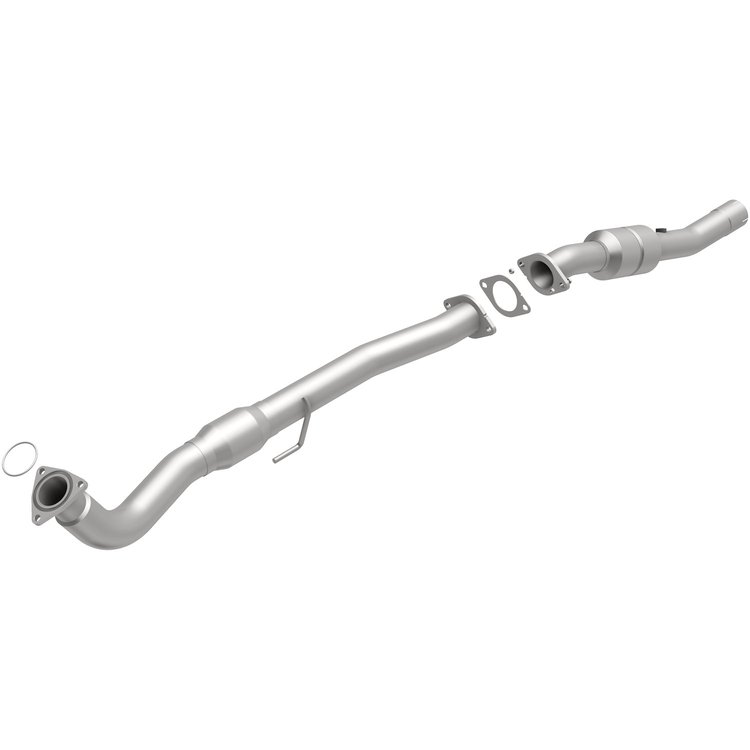

California Grade CARB Compliant Direct-Fit Catalytic Converter 458063
$2,21500
- Direct Fit California Catalytic Converter
- ULEV
- E.O. D-193-101
Magnaflow 458063 Features:
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 458063. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed to fit the 2005-2006 Chevrolet Silverado 2500 HD and 2006 GMC Sierra 2500 HD. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCatalytic Converter
BrandMAGNAFLOW
Package Height12.38
Package Width15.5
Package Length57.13
Weight33.0 PG
Part CategoryPerformance Parts
Carb Eo NumberD-193-101 (pdf)
Converter Style3-way
Outlet QuantityOne
EmissionCalifornia
Catalytic Converter FormatPre-Catalytic Converter and Main Catalytic Converter
Inlet Size (In.)3
Heat ShieldNo
Air TubeNo
Body Length9 in (228.6 mm)
Inlet QuantityOne
Case MaterialStainless steel
Universal Or Specific FitSpecific
Outlet Size3 in (76.2 mm)
Cat Converter Air Tube AdapterNot Air Tube Kit Adaptable
Converter Body SizeOEM
Oxygen Sensor LocationPre and Post Converter
Body SizeOEM
QuantitySold individually
Overall Length79.2 in (2011.7 mm)
Core Substrate MaterialCeramic
MaterialStainless Steel
Inlet AttachmentStock flange
California LegalYes
California Air Board ApprovedYes
Substrate MaterialCeramic honeycomb
Outlet AttachmentSlip fit
Exhaust Pipe MaterialStainless Steel
Exhaust Component Mount TypeUses Factory Hangers
Recommended UseConverter
Part FitmentDirect Fit
Vendor Part Number458063
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
