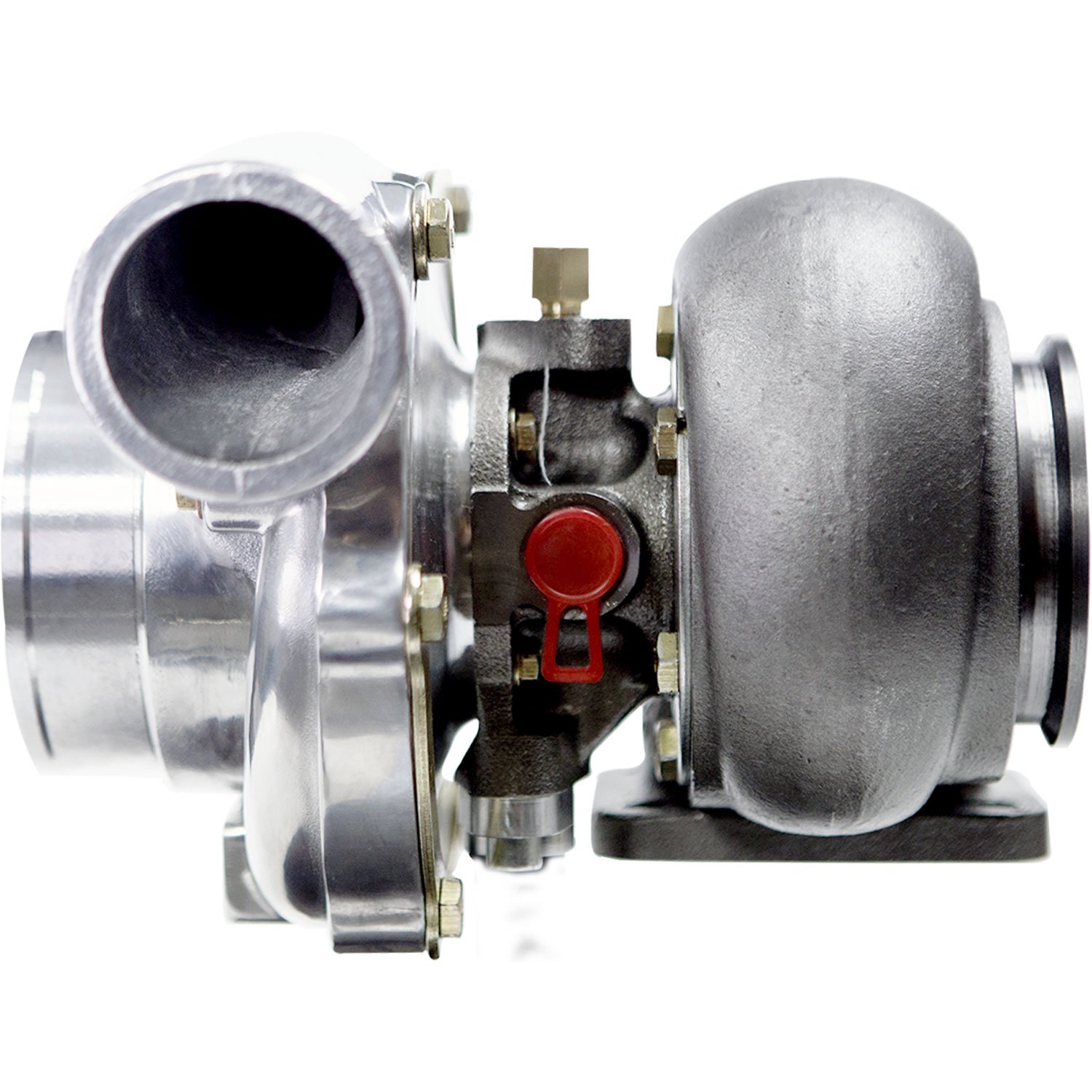

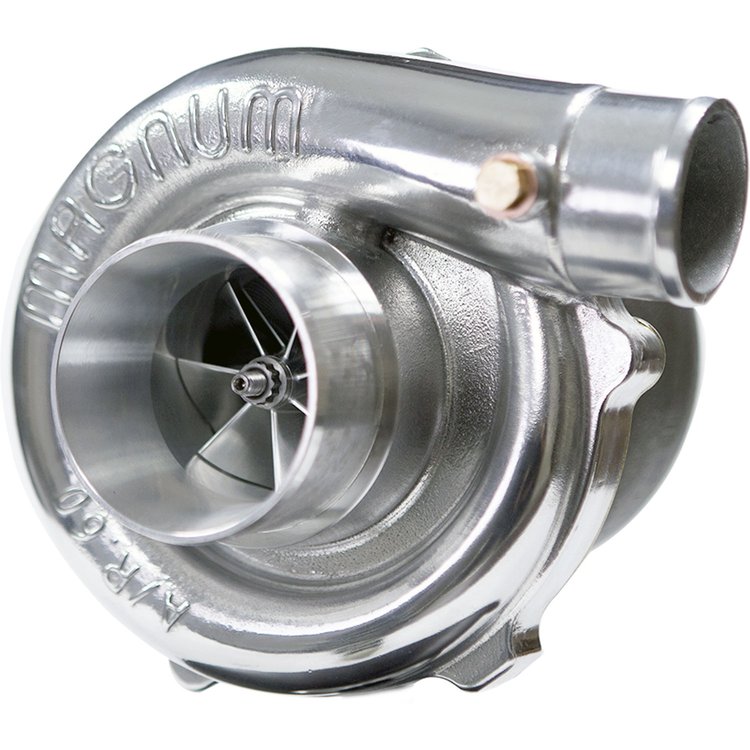

M60-1 65BB CAST

Name: M60-1 65BB CAST
Brand: MAGNUM PERFORMANCE TURBOS
SKU: 659-606065B81
Availability: InStock

Ships on 10/07/2026

Lowest Price Guarantee

Ceramic Ball Bearing Turbos with Water / Oil-Cooled CHRA

C355 High Strength Cast Aluminum Alloy Compressor Wheel

C355 Cast Compressor Wheel
59.0mm Compressor Inducer Dia.
76.2mm Compressor Wheel O.D.
64.5mm Turbine Exducer Dia.
74.2mm Turbine Wheel O.D.
0.81 Turbine A/R
T4 Open Flow Turbine Inlet
V-Band Turbine Outlet
0.60 Compressor A/R
76.0mm Compressor Air Inlet Diameter
52.0mm Compressor Air Outlet Diameter
60mm Compressor Wheel Trim
76mm Turbine Wheel Trim

60-1/65 Series

2.0L-6.0L 600 HP Applications

The Magnum Performance 60-1/65 turbocharger is designed with the entry level racing enthusiasts in mind. Inspired by the traditional 61-1 design. This unit features an optional Silicon-Nitride Angular Contact Hybrid Ceramic Ball Bearing with Water and Oil Cooled CHRA. A unit that also comes standard with their 1-year warranty. With an optional Billet Wheel upgrade and 600HP Capabilities its a great single turbo option for the mid displacement 6-cylinder applications such as VQ35, N45, VQ37, 1JZ and 2JZ. This is also a great twin turbo option for bigger displacement domestics like the LS Powered Chevy 6.7L and 5.4L Ford alike.

Magnum Performance Turbos manufacture premium quality turbochargers and other high performance products for both street use and racing enthusiasts. The goal at Magnum Performance is to offer you premium quality products, performance proven at very competitive prices. Their units are produced in a top notch Research and Development facility. Every step of the R & D process is quality controlled in accordance with American and International standards from raw material to final assembly. Production and testing equipment include top of the line Machine Centers, CNC lathes and grinding machines, Honing Machines, Vertical Lathes, Automated Grinding Machines, VSR balancing machines, Programmed Test Benches and 3-coordinate measuring machines.

Magnum Performance engineers use a variety of cutting edge modeling software packages to perform anything from a quick 1D through-flow to 2D structural mechanics, rotor-dynamics, Thermal and combustion analysis. Finally the designs are optimized through mesh generation and extensive 3D full CFD, and FEA models some requiring tens of millions of elements to produce reliable results. These tools enable them to design every component of their turbocharger to perform under extreme loads. This process also allow Magnum to provide the leading 1-year warranty in the turbo business.

C.H.R.A Technology

Low Inertia, Hydrodynamic, Copper-Tin (Cu-Zn) Dual Journal Bearing Technology with Oil Cooled Low-Inertia High Strength Single 360-Degree Thrust Bearing Design
Optional Silicon-Nitride Angular Contact Hybrid Ceramic Ball Bearing with Water and Oil Cooled CHRA

Compressor Technology
C355 High Strength Cast Aluminum Alloy Compressor Wheel
Optional Aerospace Grade Lightweight A2618 Forged Aluminum Billet Wheel, Flank Milled with 37.5-degree Extended Tip Technology
.60 A/R Compressor Housing for Optimal Efficiency Along the Full Power Band

Turbine Technology
High Silicon-Molybdenum Content Cast Ductile Iron Bearing Housing and Free Float Turbine Housing
10-Blade Turbine Wheel Design for Optimal Transient Flow Efficiency
Nickel Chromium Based Super Alloy INCONEL 713C Heat Treated Shaft and Wheel

Features:
Journal Bearing with Oil-Cooled CHRA or Ceramic Ball Bearing with Water / Oil-Cooled CHRA
C355 High Strength Cast Aluminum Alloy Compressor Wheel
.60 A/R, Tumble Polished A356 Cast Aluminum Compressor Housing for Optimal Efficiency Along the Full Power Band
Free Float, Non-Wastegated Turbine Housing
Turbine Wheel is Cast from Inconel Material for Extreme Applications
Excellent Choice for 2.0L - 6.0L Applications
Cartridges are Completely Rebuildable Using Magnum Repair Kit
The Only 1-Year Limited Warranty, Which Includes Amateur Track Racing, In The Industry on Journal Bearing Units Only

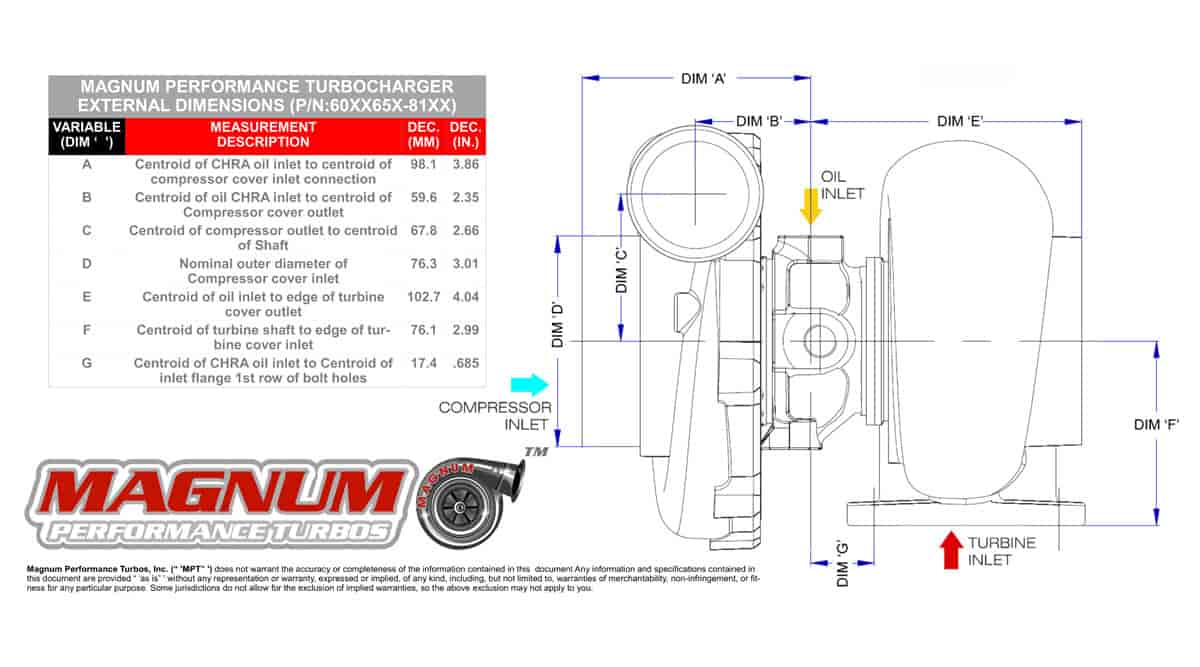

Click to Enlarge Image
