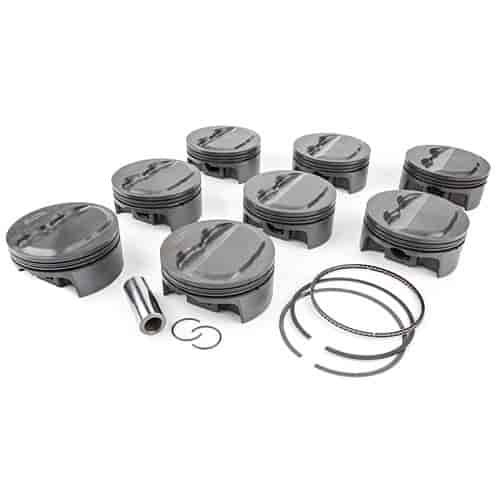

PowerPak Forged Piston & Ring Kit for Ford Coyote 5.0L / Voodoo 5.2L

Name: PowerPak Forged Piston & Ring Kit for Ford Coyote 5.0L / Voodoo 5.2L
Brand: MAHLE MOTORSPORTS PISTONS
SKU: 644-930134040
Price: 858.85 USD
Availability: InStock

^$858⁸⁵

Ships on 09/15/2026

Lowest Price Guarantee

Ford Coyote 5.0L / Voodoo 5.2L

PowerPak Piston & Ring Kit

Ford Coyote 5.0L / Voodoo 5.2L

Forged 2618 Alloy

Bore: 3.640 in.

Stroke: 3.650 in.

Pin Diameter: 0.866 in.

-5 cc Dome Volume

Compression Ratio @ 57cc: 10.0:1

Technical Specs:

Cubic Inches: 304
Bore: 3.640 in.
Stroke: 3.650 in.
Rod Length: 5.933 in.
Compression Height: 1.167 in.
Pin Diameter: 0.866 in.
Crown Volume: -5 cc
Weight: 381 grams
Compression Ratio @ 57cc: 10.0:1
Piston Ring Thickness: 1.000 mm, 1.000 mm, 2.000 mm
Forged 2618 high strength alloy and hard anodized top ring groove for extreme duty applications

The Mahle PowerPak is a complete race-proven piston assembly kit composed of hand deburred, forged, performance coated pistons, high-quality steel pins, round wire locks and low drag performance rings. It may seem crazy, but you really can get 8, 14, or even 22 more HP with Mahle pistons and rings. The secret is in Mahle's ultra flat ring grooves and low drag rings. Improved sealing minimizes parasitic drag to create ''free'' horsepower.

Performance coatings include a phosphate dry lubricant (not to be confused with a thermal film coating) that is used to protect against ring micro-welding and pin galling during initial startup and break-in. For additional performance, Mahle applies its proprietary Grafal anti-friction coating to each piston skirt.

Features

Forged Aluminum Pistons
CNC-machined crown
Hand deburred finishing
Forced pin oiling with machined drain backs
Lightweight slipper skirt forgings
CNC-finished pin bores
Forced Pin Oiling
Reliable round wire locks standard with every kit
Pre-fitted German steel pins noted for their high strength, lightweight, and durability
Phosphate coating is a dry lubricant that provides Mahle pistons' grey appearance
Piston crown remains machinable
Mahle's Grafal skirt coating reduces piston noise, drag, scuffing, friction, and cylinder bore wear
Precision ring grooves for included piston rings
