Small Block Chevy PowerPak Piston & Ring Kit Forged 4032 High Silicon Low Expansion Aluminum Alloy
InfoVehicle Info Needed
MAHLE MOTORSPORTS PISTONSPART NUMBER: 644-930200640

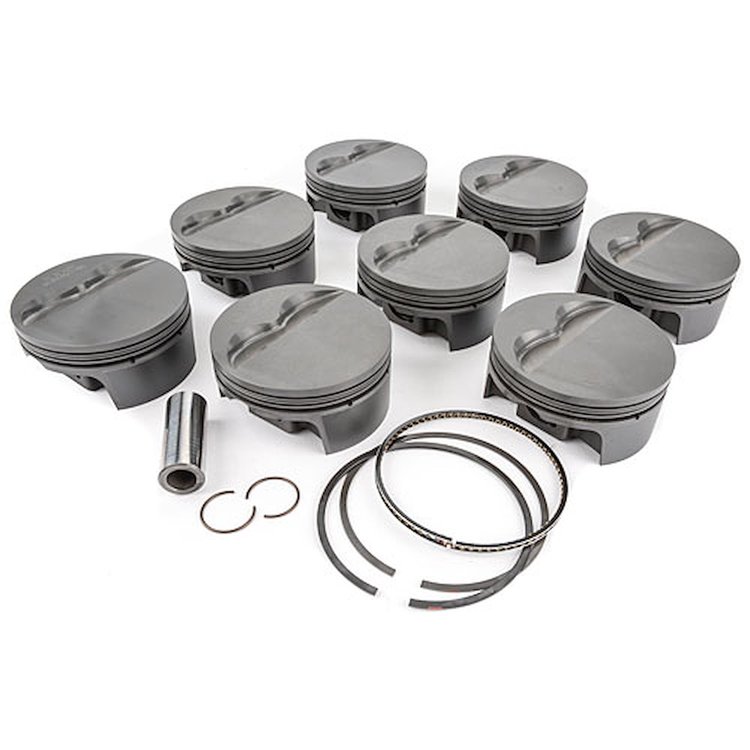

Small Block Chevy PowerPak Piston & Ring Kit Forged 4032 High Silicon Low Expansion Aluminum Alloy

$77657
8 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Engine Cylinder Hone [Hones 2 in. to 7 in. Cylinder Bores]

JEGS

Engine Cylinder Hone [Hones 2 in. to 7 in. Cylinder Bores]

Part Number : 555-80695
$3299$36.99
You Save$4.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52

Small Block Chevy 350ci
  • Flat Top Pistons
  • 1.5, 1.5, 3.0mm Rings
  • Small Block Chevy PowerPak Piston & Ring Kit
  • Forged 4032 High Silicon Low Expansion Aluminum Alloy
  • Bore: 4.040 in.
  • Pin Diameter: 0.927 in.
  • -5 cc Dome Volume
  • Compression Ratio @ 64 cc: 10.5:1 (359 ci)

    Technical Specs:

    -Combination 1-

    • Cubic Inches: 359
    • Bore: 4.040 in.
    • Stroke: 3.480"/3.500 in.
    • Rod Length: 6.125 in.
    • Compression Height: 1.125 in.
    • Pin Diameter: 0.927 in.
    • Crown Volume: -5 cc
    • Weight: 409 g
    • Compression Ratio @ 58cc: 11.3:1
    • Compression Ratio @ 64cc: 10.5:1
    • Compression Ratio @ 70cc: 9.8:1

    -Combination 2-

    • Cubic Inches: 385
    • Bore: 4.040 in.
    • Stroke: 3.750 in.
    • Rod Length: 6.000 in.
    • Compression Height: 1.125 in.
    • Pin Diameter: 0.927 in.
    • Crown Volume: -5 cc
    • Weight: 409
    • Compression Ratio @ 58cc: 12:1
    • Compression Ratio @ 64cc: 11.2:1
    • Compression Ratio @ 70cc: 10.4:1
  • The Mahle PowerPak is a complete race-proven piston assembly kit composed of hand deburred, forged, performance coated pistons, high-quality steel pins, round wire locks and low drag performance rings.
    It may seem crazy, but you really can get 8, 14, or even 22 more HP with Mahle pistons and rings. The secret is in Mahle's ultra flat ring grooves and low drag rings. Improved sealing minimizes parasitic drag to create ''free'' horsepower.

    Show More

    Performance coatings include a phosphate dry lubricant (not to be confused with a thermal film coating) that is used to protect against ring micro-welding and pin galling during initial startup and break-in. For additional performance, Mahle applies its proprietary Grafal anti-friction coating to each piston skirt.

    Features

    • Forged Aluminum Pistons
    • CNC-machined crown
    • Hand deburred finishing
    • Forced pin oiling with machined drain backs
    • Lightweight slipper skirt forgings
    • CNC-finished pin bores
    • Forced Pin Oiling
    • Reliable round wire locks standard with every kit
    • Pre-fitted German steel pins noted for their high strength, light weight, and durability
    • Phosphate coating is a dry lubricant that provides Mahle pistons' grey appearance
    • Piston crown remains machinable
    • Mahle's Grafal skirt coating reduces piston noise, drag, scuffing, friction, and cylinder bore wear
    • Precision ring grooves for included piston rings
      Horsepower Comparison Chart

      Click To Enlarge

    Part TypePiston
    Product LineMahle Small Block Chevy PowerPak Piston & Ring Kits
    BrandMAHLE MOTORSPORTS PISTONS
    Package Height2.4
    Package Width12.3
    Package Length14.5
    Weight11.84 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
