Vehicle Info NeededMAHLE MOTORSPORTS PISTONSPART NUMBER: 644-930202630

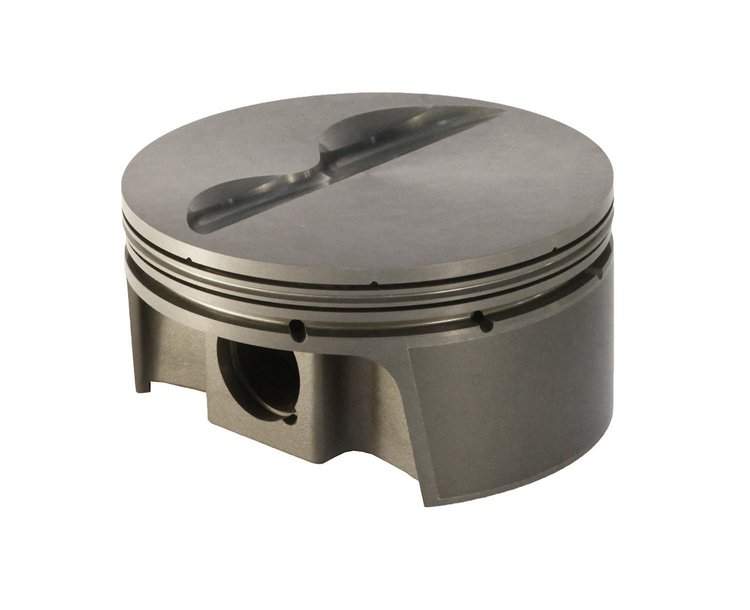

PISTON SET SB-CHEVY
$97082
Ships Tomorrow
Lowest Price Guarantee- 358ci,4.030bore,3.500stroke,600rod,1.250ch,.927pin,- 4cc,369g,10.5cr,4032
Mahle Motorsports Pistons 644-930202630 Features:
Part TypePiston
BrandMAHLE MOTORSPORTS PISTONS
Part CategoryReplacement Parts
Compression Height1.250 in
Pins IncludedYes
Ocr MaterialChrome plated stainless steel
File FitYes
Pin Wall Thickness0.129 in
Pin MaterialSteel
Bore Diameter4.030 in
Piston StyleFlattop, w/ 2 valve reliefs
Rings IncludedYes
Pin Length58.1 mm
Ocr TensionStandard
Lcr Material9254 Steel
Ucr CoatingHV385
Lcr Thickness1.0 mm
Pin Diameter23.55 mm
Clips IncludedYes
Stroke3.500 in
Pin StyleFloating
QuantitySet of 8
Ucr Thickness1.0 mm
MaterialForged 4032
Compression Ratio10.6:1
Clip StyleRound Wire
Ocr Thickness2.0 mm
Crown Volume4.1 cc Dish
Piston Mass393 g
Pin Mass93 g
Lcr CoatingPhosphate
Ucr Material9254 Steel
Part FitmentUniversal
Engine Displacement357 cid
Rod Length6 in
Package Qty1
Some parts are not legal for use in California or other states with similar laws / regulations
