Vehicle Info NeededMAHLE MOTORSPORTS PISTONSPART NUMBER: 644-930218590

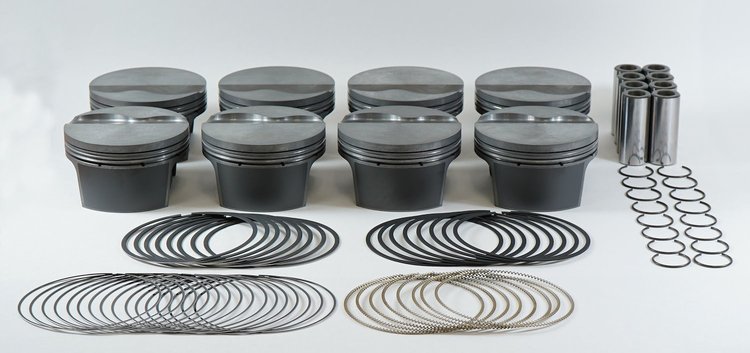

GM LS PowerPak Piston & Ring Kit
$89945
Ships on 09/11/2026
Lowest Price GuaranteeLS1/LS2/LS6 Chevy PowerPak Piston & Ring KitForged 2618 High Strength Aluminum Alloy Bore: 3.790 in. Pin Diameter: 0.945 in. -4.2 cc Dome Volume
Mahle Motorsports 930218590 Features:
- Cubic Inch: 327
- Stroke: 3.622 in.
- Rod Length: 6.098 in.
- Weight: 425 g
- Compression Ratio @ 62cc: 10.1:1
- Compression Ratio @ 65cc: 9.7:1
- Compression Ratio @ 71cc: 9.1:1
- File Fit Performance Ring Set Included
The Mahle PowerPak is a complete, race proven piston assembly kit composed of hand deburred, forged, performance coated pistons, high-quality steel pins, round wire locks and low drag performance rings. Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break-in. For additional performance, Mahle applies its proprietary Grafal anti-friction coating to each piston skirt.
Show More
Features
- Forged Aluminum Pistons
- CNC machined crown
- Hand deburred finishing
- Forced pin oiling with machined drain backs
- Lightweight slipper skirt forgings
- CNC finished pin bores
- Forced Pin Oiling
- Race Proven, reliable round wire locks, standard with every kit
- Pre-fitted German steel pins noted for their high strength, lightweight, and durability
- Phosphate coating - provides the grey appearance to the Mahle piston. This dry lubricant coating (not to be confused with a thermal film coating) provides a lubricant film in the pin bores and ring grooves until the oil system of the engine reached operating pressure; particularly useful during the initial start-up or break-in of engines to protect against galling and micro welding. Piston crown remains machineable.
- Mahle's Grafal Skirt Coating - Reduces drag, scuffing, friction and cylinder bore wear; reduces piston noise.
- Precision ring grooves for included piston rings
Part TypePiston
Product LineMahle GM LS PowerPak Piston & Ring Kits
BrandMAHLE MOTORSPORTS PISTONS
Package Height6.4
Package Width11.5
Package Length13.7
Weight11.63 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
