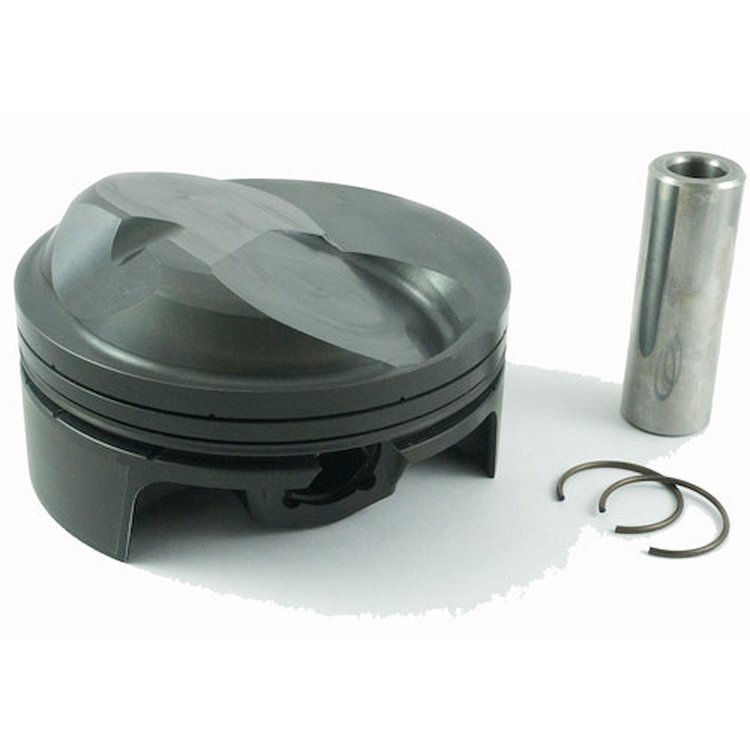

Elite Sportsman Drag Series PowerPak+ Pistons Set
InfoVehicle Info Needed
MAHLE MOTORSPORTS PISTONSPART NUMBER: 644-930239100

Elite Sportsman Drag Series PowerPak+ Pistons Set

$1,11819
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Chevy Big Block
  • Dome Top Pistons
    • Elite Sportsman Drag Series PowerPak+ Pistons Set
    • Chevy Big Block 565ci
    • Bore:4.600"
    • Stroke:4.250"
    • Rod Length:6.535"
    • Comp. Height:1.120"
    • Pin Diameter:0.990"
    • Dome Volume:42cc

      Notes:
    • Compression Ratios: 15.2:1 @ 112cc, 14.2:1 @ 118cc, 13.4:1 @ 124cc
    • Piston Rings Are Sold Separately

    Mahle Elite Sportsman Drag Series PowerPak+ Pistons are designed specifically for bracket racing applications. These dome-top pistons are manufactured to exacting tolerances and compatible with popular Big Block Chevy cylinder heads. They are light-weight, externally strutted and feature true slipper skirt 2618 alloy forgings, dual coatings, lateral gas ports, and advanced pin bore, profile, and ovality geometries. All piston sets are sold in quantities of 8 and include wrist pins and circlips. To complement these pistons, a new series of Elite Sportsman PowerPak+ Ring Kits have been introduced along side them. Ring kits are grooved for a .043", .043", 3.0mm ring set and are available in either a standard or low tension variants. Rings are sold separately from the pistons to allow you to choose which application best suits your needs.

    Show More

    Features:

    • Developed With Drag Race Specific Stress Areas In Mind
    • Manufactured To Exacting Tolerances
    • Made From Light Weight 2618 Forged Aluminum Alloy
    • Externally Strutted
    • Lateral Gas Ports
    • Advanced Pin Bore
    Part TypePiston
    Product LineMahle Elite Sportsman Drag Series PowerPak+ Pistons & Ring Kits
    BrandMAHLE MOTORSPORTS PISTONS
    Package Height6.6
    Package Width11.3
    Package Length13.8
    Weight15.825 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
