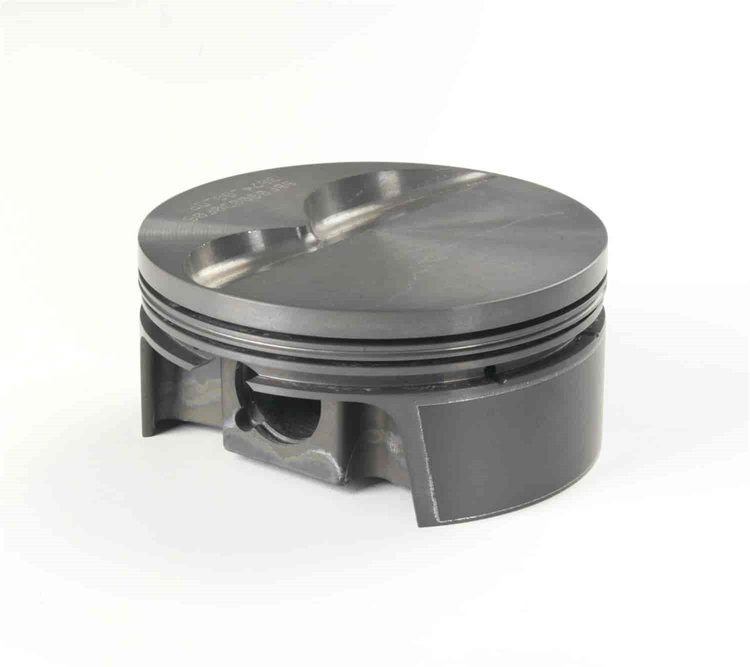

Small Block Ford Flat Top Piston for Twisted Wedge Cylinder Head [347 ci]

Name: Small Block Ford Flat Top Piston for Twisted Wedge Cylinder Head [347 ci]
Brand: MAHLE MOTORSPORTS PISTONS
SKU: 644-930250330-1
Price: 86.09 USD
Availability: InStock

^$86⁰⁹

Ships on 09/21/2026

Lowest Price Guarantee

Small Block Ford

Flat Top Pistons

1.0, 1.0, 2.0mm Rings

Flat Top Piston

Small Block Ford

Twisted Wedge Cylinder Head

Forged 4032 High Silicon Low Expansion Aluminum Alloy

Bore: 4.030 in.

Pin Diameter: 0.927 in.

-6.2 cc Dome Volume

Mahle Motorsports 930250330-1 Features:

Cubic Inch: 347
Stroke: 3.400 in.
Rod Length: 5.400 in.
Weight: 425 g
Compression Ratio @ 58cc: 10.8:1
Compression Ratio @ 64cc: 10.4:1
Compression Ratio @ 70cc: 9.9:1
1.0 mm, 1.0 mm, 2.0 mm File Fit Performance Ring Set Included

Part TypePiston

BrandMAHLE MOTORSPORTS PISTONS

Package Height3.5

Package Width5.2

Package Length5.7

Weight1.44 PG

Part CategoryPerformance Parts

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

Small Block Ford Flat Top Piston for Twisted Wedge Cylinder Head [347 ci]

Mahle Motorsports 930250330-1 Features:
