Vehicle Info NeededMAHLE MOTORSPORTS PISTONSPART NUMBER: 644-930258030

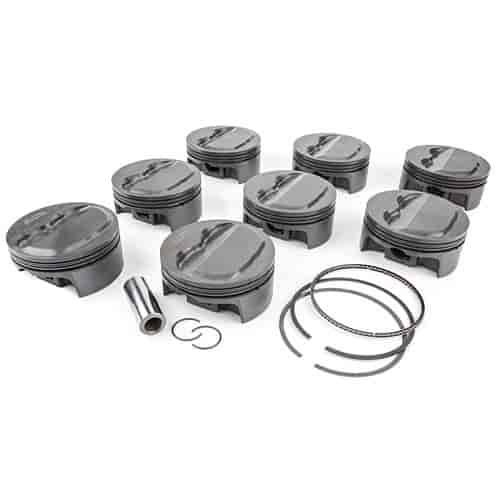

PowerPak Forged Piston & Ring Kit for Ford Coyote 5.0L / Voodoo 5.2L
$88441
Ships on Sep 15, 2026
Lowest Price GuaranteeFord Coyote 5.0L / Voodoo 5.2L
PowerPak Piston & Ring KitFord Coyote 5.0L / Voodoo 5.2L Forged 2618 Alloy Bore: 3.630 in. Stroke: 3.650 in. Pin Diameter: 0.866 in. 3 cc Dome Volume Compression Ratio @ 57cc: 11.2:1
Technical Specs:
- Cubic Inches: 302
- Bore: 3.630 in.
- Stroke: 3.650 in.
- Rod Length: 5.933 in.
- Compression Height: 1.167 in.
- Pin Diameter: 0.866 in.
- Crown Volume: 3 cc
- Weight: 389 grams
- Compression Ratio @ 57cc: 11.2:1
- Piston Ring Thickness: 1.000 mm, 1.000 mm, 2.000 mm
- Forged 2618 high strength alloy and hard anodized top ring groove for extreme duty applications
Part TypePiston
BrandMAHLE MOTORSPORTS PISTONS
Package Width13.0
Weight13.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
