Product Discontinued
MAHLE MOTORSPORTS PISTONSPART NUMBER: 644-MOD220571F00

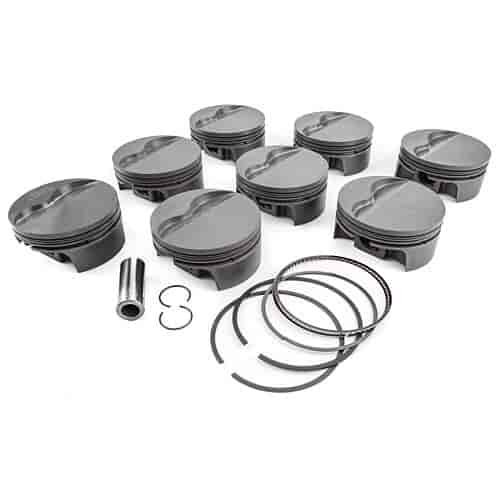

Mahle Ford Modular PowerPak Piston & Ring Kits
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
4.6/5.4L Ford ModularFlat Top Pistons 1.5, 1.5, 3.0mm Rings
- 4.6/5.4L Modular Ford PowerPak Piston & Ring Kit
- Forged 4032 High Silicon Low Expansion Aluminum Alloy
- Bore: 3.571"
- Pin Diameter: 0.866"
- 0cc Dome Volume
- Compression Ratio @46cc: 11.3:1 (334ci)
Technical Specs:
-Combination 1- - Cubic Inches: 284
- Bore: 3.571"
- Stroke: 3.543"
- Rod Length: 5.930"
- Compression Height: 1.220"
- Pin Diameter: 0.866"
- Crown Volume: 0cc
- Weight: 392g
- Compression Ratio @ 42cc: 13:1
- Compression Ratio @ 46cc: 12.1:1
- Compression Ratio @ 52cc: 10.9:1-Combination 2-
- Cubic Inches: 334
- Bore: 3.571"
- Stroke: 4.165"
- Rod Length: 6.657"
- Compression Height: 1.220"
- Pin Diameter: 0.866"
- Crown Volume: 0cc
- Weight: 392g
- Compression Ratio @ 42cc: 12:1
- Compression Ratio @ 46cc: 11.3:1
- Compression Ratio @ 52cc: 10.5:1
Part TypePiston
BrandMAHLE MOTORSPORTS PISTONS
Package Height6.4
Package Width11.4
Package Length25.0
Weight11.8 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
