Product Discontinued
MAHLE MOTORSPORTS PISTONSPART NUMBER: 644-SBF165030I16

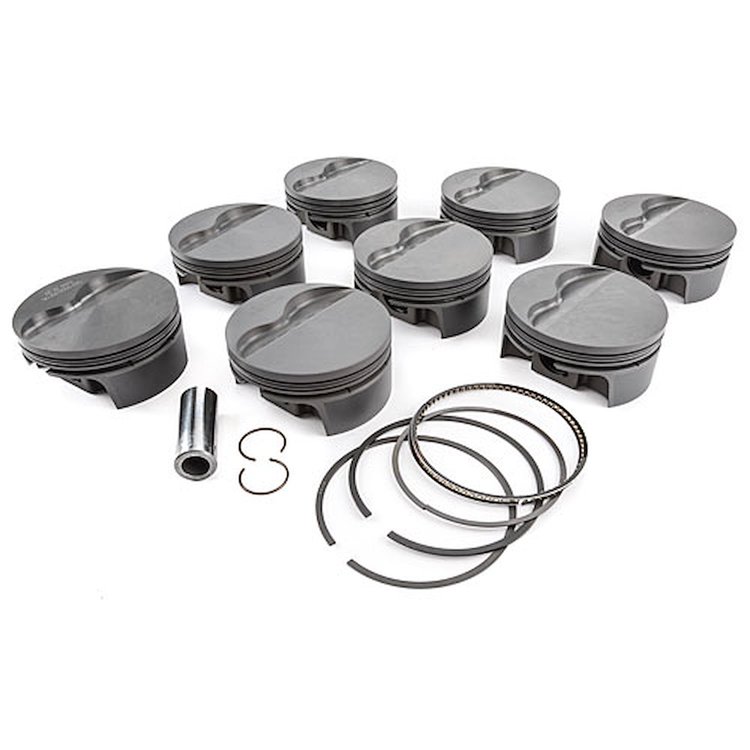

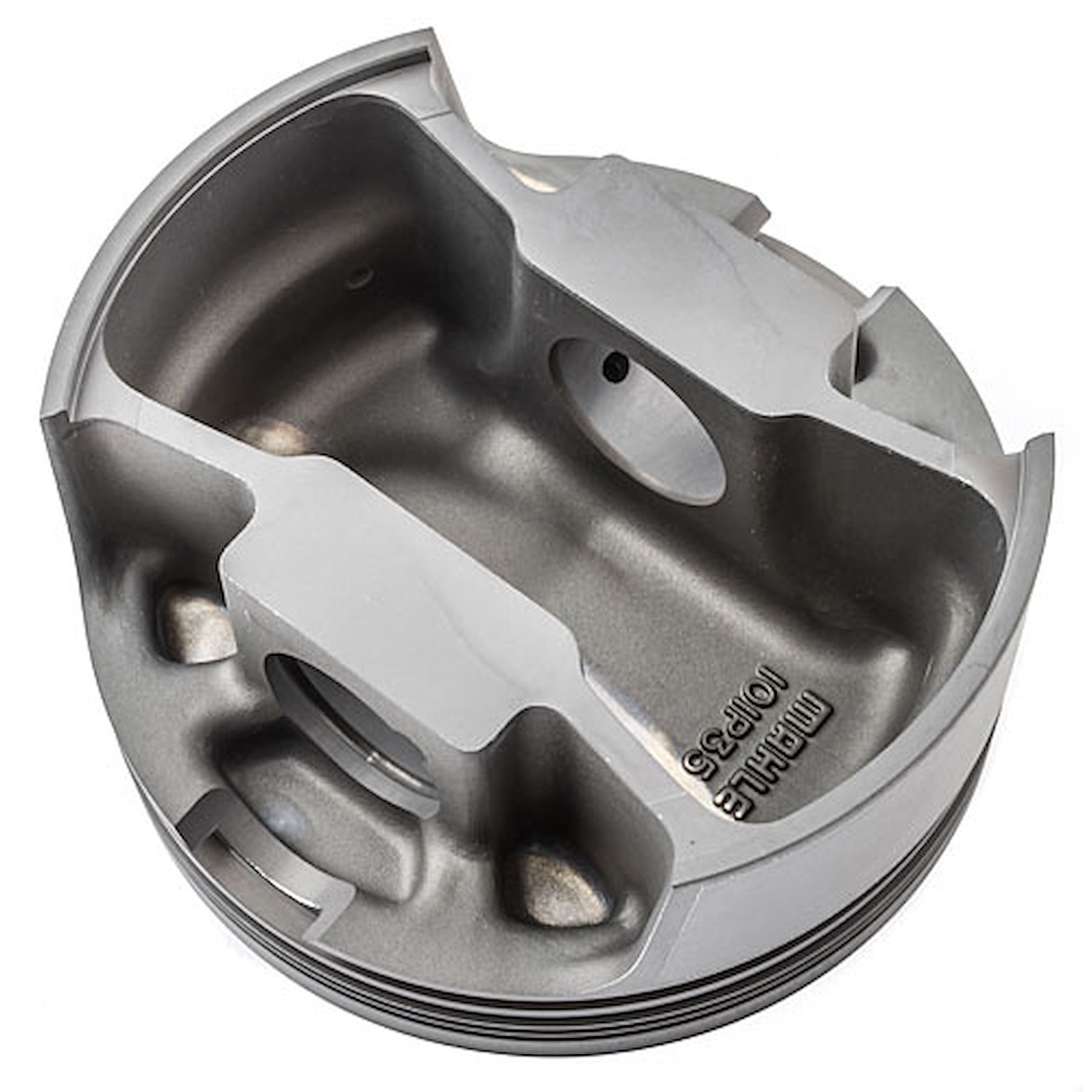

Mahle Small Block Ford PowerPak Piston & Ring Kits
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block FordInverted Dome Pistons 1.5, 1.5, 3.0mm Rings
- Small Block Ford PowerPak Piston & Ring Kit
- Forged 4032 High Silicon Low Expansion Aluminum Alloy
- Bore: 4.030''
- Pin Diameter: 0.927''
- -16cc Inverted Dome
- Compression Ratio @ 64cc: 8.7:1 (331ci)
Technical Specs:
-Combination 1- - Cubic Inches: 425
- Bore: 4.030"
- Stroke: 4.170"
- Rod Length: 6.250"
- Compression Height: 1.165"
- Pin Diameter: 1.165"
- Crown Volume: -16cc
- Weight: 403g
- Compression Ratio @ 58cc: 11.5:1
- Compression Ratio @ 64cc: 10.8:1
- Compression Ratio @ 70cc: 10.2:1-Combination 2-
- Cubic Inches: 331
- Bore: 4.030"
- Stroke: 3.250"
- Rod Length: 5.400"
- Compression Height: 1.165"
- Pin Diameter: 0.927"
- Crown Volume: -16cc
- Weight: 403g
- Compression Ratio @ 58cc: 9.3:1
- Compression Ratio @ 64cc: 8.7:1
- Compression Ratio @ 70cc: 8.2:1
Part TypePiston
BrandMAHLE MOTORSPORTS PISTONS
Package Height6.4
Package Width11.4
Package Length25.1
Weight13.2 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
