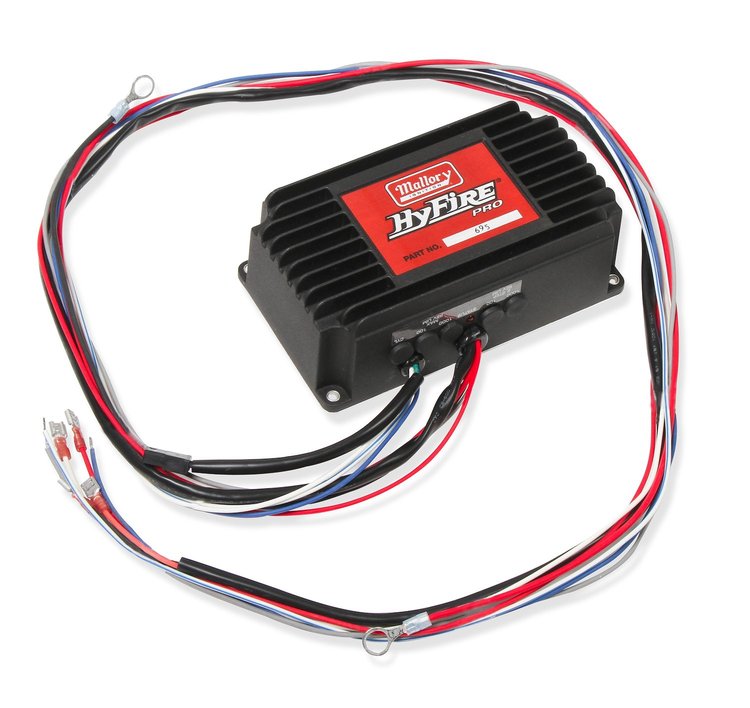

HyFire Pro Ignition Control Box
Product Discontinued
MALLORYPART NUMBER: 650-695

HyFire Pro Ignition Control Box

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ignition Control Box
HyFire Pro Ignition Control Box
  • Per Spark Energy: 135 mJ
  • Built-in 2-Step Rev Limiter
  • Black

    Notes:

    • Accepts Hall-Effect, Points, Amplified and Mag Pickup triggers.
    • Legal only for off-highway use (except in California or states that have adopted California emission standards), racing use or for use on pre-emission-controlled motor vehicles/motor vehicle engines (pre-1966 domestic vehicles certified to California standards, pre-1968 domestic vehicles certified to federal standards and all pre-1968 foreign vehicles), per the manufacturer’s application guide.
  • A modern twist on a familiar name in ignition performance is back! The Mallory HyFire needs no introduction. Packed inside the retro case are modern electronics ready to deliver a powerful ignition punch. The HyFire is a capacitive discharge ignition that supplies multiple sparks at low RPMs for a clean idle and quick throttle response. Since the HyFire provides powerful spark through redline, a built in adjustable rev limiter will help tame your beast in case of a missed shift or driveline failure. The rev limiter is adjustable in 100 RPM increments with easily adjustable rotary dials.

    Show More

    Features:

    • Modern capacitive discharge ignition technology
    • Retro design for classic good looks
    • Connects easily to points, amplifiers and magnetic pickup distributors
    • Adjustable rev limiter for overrev protection
    • Multiple sparks at low RPM for improved starting, clean idle and snappy throttle response
    Part TypeIgnition Box
    Product LineMallory HyFire Ignition Box
    BrandMALLORY
    Package Height3.375 in (85.725 mm)
    Package Width4 in (101.6 mm)
    Package Length9.8
    Weight3.25 PG
    Part CategoryPerformance Parts
    Minimum Operating Voltage12 V
    Current Draw0.7 amps per 1,000 rpm
    Overall Length6.875 in (174.6 mm)
    Cd Voltage Output To Coil535 V
    Spark Output (Millijoules)135 Millijoules
    Part FitmentSemi Universal
    Rpm12,500
    Coil IncludedNo
    Maximum Operating Voltage18 V
    Vendor Part Number695
    Package Qty1
    Package TypeEA
