Extreme Duty Exhaust Valve LS7
InfoVehicle Info Needed
MANLEYPART NUMBER: 660-11687-1

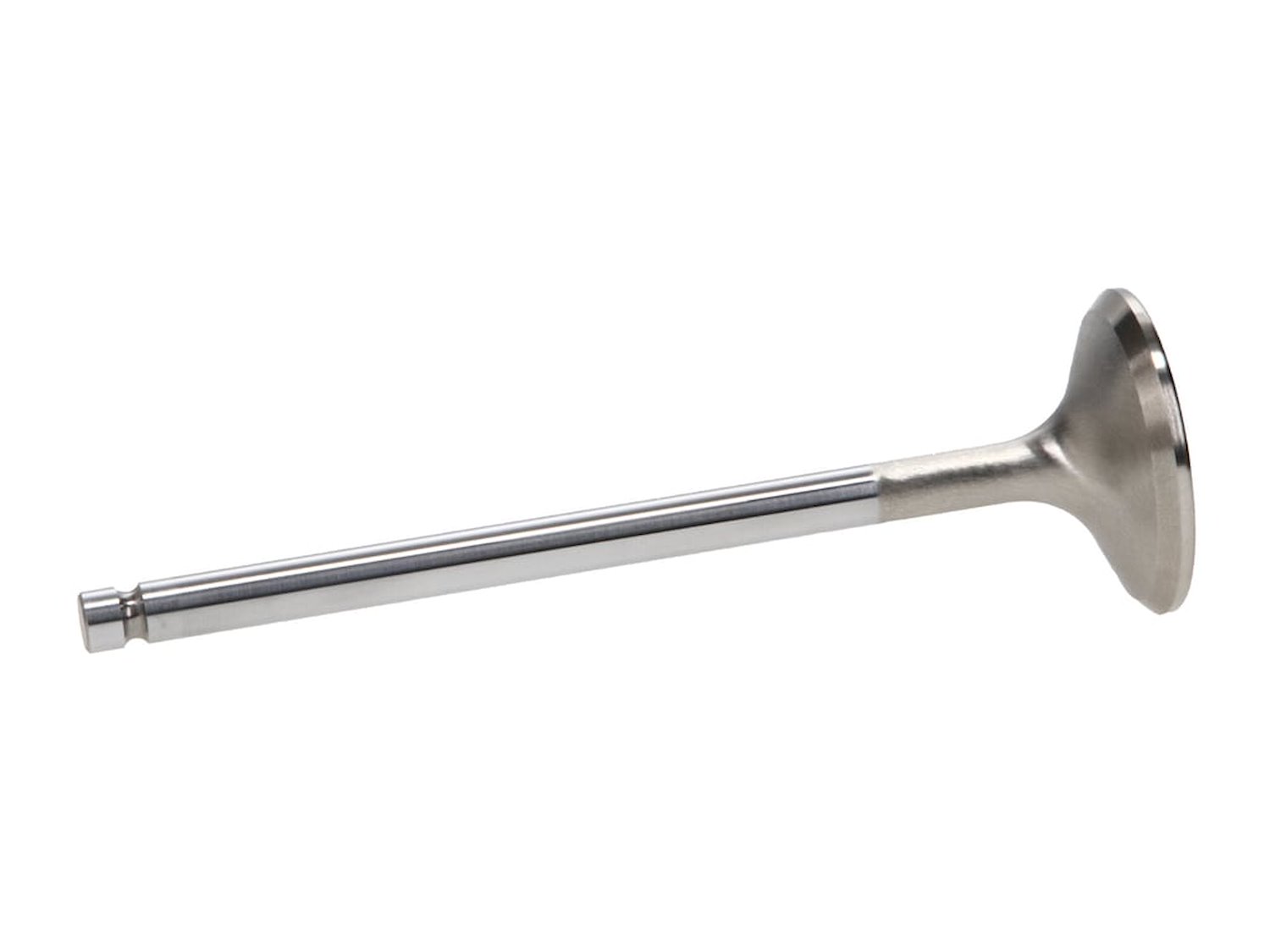

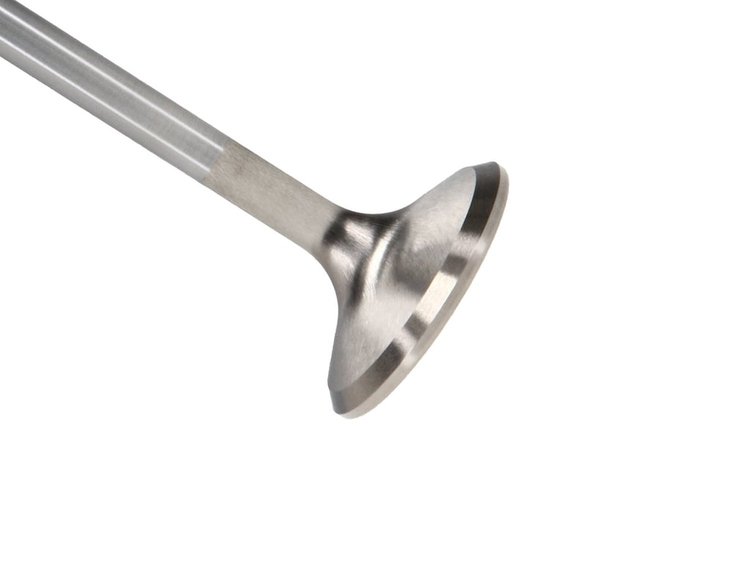

Extreme Duty Exhaust Valve LS7

$6426
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Exhaust Valves
    Extreme Duty Exhaust Valve
  • LS7
  • 1.610'' Diameter
  • 8mm (0.3136'') Stem Diameter
  • 5.230'' Overall Length (Stock)
  • Stainless Steel
  • 1/pkg.

  • Type: Exhaust Valve XH-432 Material
  • Head Diameter: 1.610'
  • Stem Diameter: 8mm / 0.3136'
  • Installed Height: Stock
  • Overall Length: 5.230'
  • Tip Length: 0.290'
  • Underhead Angle / Radius: 25° x 7/16'
  • Margin: 0.075'
  • Seat Width: 0.100'
  • Top of Head: 18° Dish
  • Weight / Grams: 103

Standard Straight Valve Stem Design

Manley Performance is indisputably a leading manufacturer of performance and racing components in the world. The reason for Manley's overwhelming success is simple: Quality. Manley offers the best materials in the industry - exclusive materials that other manufacturers do not possess. Manley's valve stems are hard coated with .0002'' thick chrome rather than a few millionths of flash. Manley's hard valve tips are superior to competitors' puddled ''stellite'' which can crack and erode off the stem. Manley's valve head and under head shapes have been in the forefront of the quest for improved flow since the late 1960's.

Show More

The Extreme Duty series valves are designed for Top Fuel and Funny Car drag racers, Big Block Chevy marine enthusiasts, and Small Block Chevy restricted carburetor circle track competitors will all benefit by the use of Xtreme Alloy exhaust valves. Exotic steel is required simply because of the enormous heat imposed on the exhaust valves in these applications.

Features:

  • Top Fuel, Funny Car and Marine Engine Exhaust Valves
  • More Hot Hardness and High Temperature Strength than any competitive offerings
  • Chrome Stems and Hard Tips
  • Swirl Polished and Fully Machined
  • XH-432 XtremeAlloy

Part TypeValve
Product LineManley LS7 Chevy Extreme Duty Stainless Steel Valves
BrandMANLEY
Package Height1.7
Package Width2.05
Package Length5.5
Weight0.23 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number11687-1
Package Qty1
Package TypeEA
