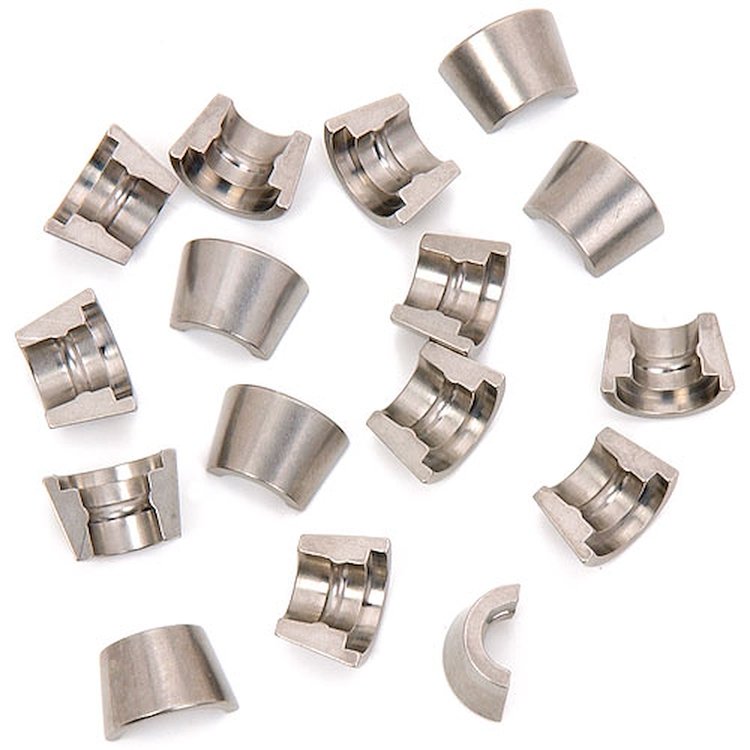

Vehicle Info Needed10° Titanium Valve Locks PVD Coated
Ships on 09/28/2026
Lowest Price Guarantee- 10° Titanium Valve Locks
- PVD Coated
- 5/16'' Valve Stem (.3110'')
- Bead Loc Groove
- +.050'' Height
- 3.6 grams
- Set of 8 pairs
10° Design Eliminates Retainer Extrusion Problems
Engineered to work with Manley 10° Retainers, these 10° valve locks are made from the highest quality lightweight titanium material, are thicker than competitor locks. A favorite among drag racing engine builders, Manley 10° Titanium Valve Locks are strong, reliable & durable. Manley supports both conventional and Bead Loc groove systems with an extensive lineup of premium valve locks.
Show More
The groove in a valve stem is imperative to proper valve performance. Inferior grooves, unsuitable retainers, or mismatched locks can cause catastrophic failure. Though conventional (or square) grooves are very popular, their success depends on precise machining. The groove's surface must be impeccable (i.e., no residual machining marks), and the groove requires an exact .013" radius in the upper corner (too large a radius increases the chance of groove abrasion; too small a radius exposes the groove to sharp fillets). Even perfect conventional grooves, however, are subject to the abuse of substandard components. Enter Bead Loc... Intended to be simple and forgiving, the Bead Loc groove has a .110" full radius, and radius contact points are not at the groove's root. This minimizes vertical movement, especially in the presence of a valve float, to lessen valve erosion for longer service life.
Features
- 10° Angle
- High Quality Lightweight Titanium Material
- Thicker Construction Adds Strength
- Groove Type: Conventional or Bead Loc
- Overcome Extrusion Issues with Greater Lock Thickness
- PVD coated locks for easier disassembly in high spring pressure/high RPM applications
