Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
2.100'' Crankshaft Journal0.945'' Piston Pin Diameter

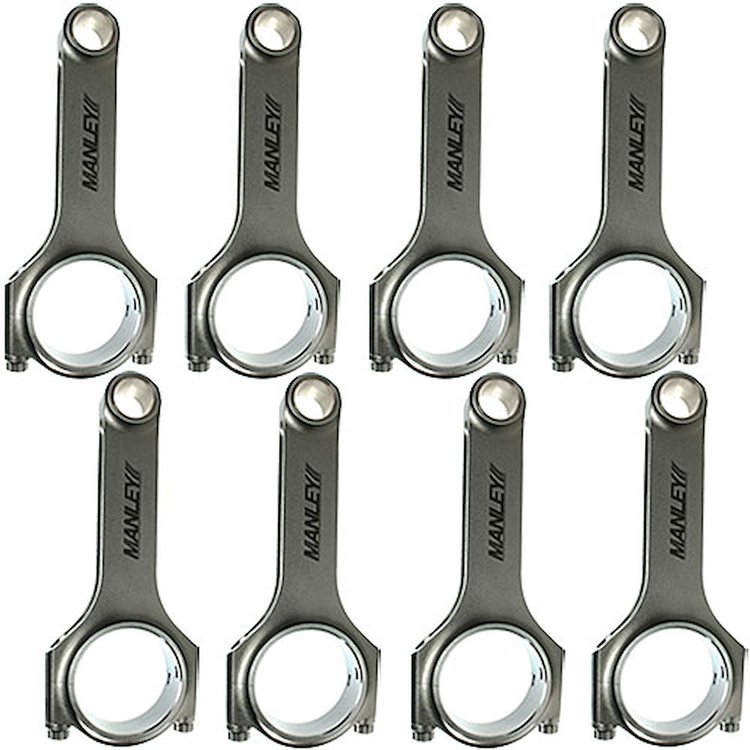

- Chevy LS1 H-Beam Connecting Rods
- H-Lite Series
- 6.125'' (+.025) Center-to-Center
- 2.100'' Crankshaft Journal Size (Large, No Offset)
- 2.225'' Big End Bore
- 0.9457'' Piston Pin Bore
- 3/8'' ARP 2000 Cap Screws
- 601 Grams
- 8/pkg.
*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.
Part TypeConnecting Rod
BrandMANLEY
Package Height4.5
Package Width9.0
Package Length10.0
Weight12.0 PG
Part CategoryPerformance Parts
Rod Journal Diameter2.1 in (53.3 mm)
Big End Bore Diameter2.225 in (56.515 mm)
Part FitmentSemi Universal
Pin End Width1.06 in (26.9 mm)
Big End Width0.941 in (23.901 mm)
ToolStroker Combinations
Connecting Rod Length Center To Center6.125 in (155.575 mm)
Vendor Part Number14033-8
Package Qty1
Package TypeEA
