Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

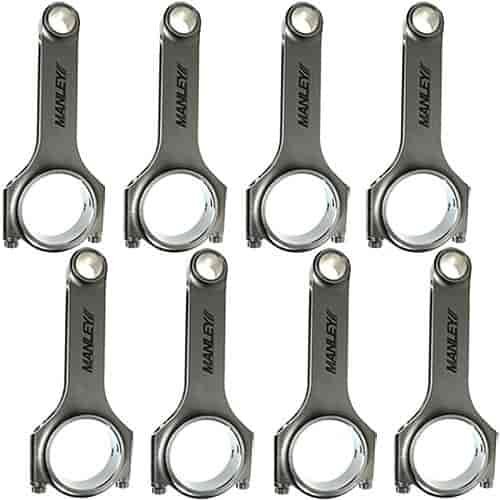

Small Crankshaft Journal
- SB-Chevy H-Beam Connecting Rods
- H-Lite Series
- 6.000'' (+.300) Center-to-Center
- 2.000'' Crankshaft Journal Size (Small)
- 2.225'' Big End Bore
- 0.9281'' Piston Pin Bore
- 3/8'' ARP 2000 Cap Screws
- 626 Grams
- 8/pkg.
*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.
Forged 4340 Steel Connecting Rods
The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market.
Show More
Features:
- Manufactured from 4340 forgings
- Heat treated, stress relieved, shot peened and 100% magnafluxed
- Weight matched sets +/- 1.5 grams
- Cap fasteners are premium 3/8'' ARP 2000 cap screws
- Horsepower range for this rod is 600+ HP
Connecting Rod Common Specs: - Crankshaft Pin Diameter: 2.000'' (Small Journal); 2.100'' (Large Journal)
- Crankshaft Pin Width: 0.941''
- Piston Pin Diameter: 0.9281'' (for .927'' diameter pin)
- Piston Pin Width: 1.060''
Part TypeConnecting Rod
Product LineManley Small Block Chevy H-Lite Series H-Beam Connecting Rods
BrandMANLEY
Part CategoryPerformance Parts
Rod Journal Diameter2 in (50.8 mm)
Big End Bore Diameter2.125 in (53.975 mm)
Part FitmentSemi Universal
Pin End Width1.06 in (26.9 mm)
Big End Width0.941 in (23.901 mm)
ToolStroker Combinations
Connecting Rod Length Center To Center6 in (152.4 mm)
Vendor Part Number14036-8
Package Qty1
Package TypeEA
