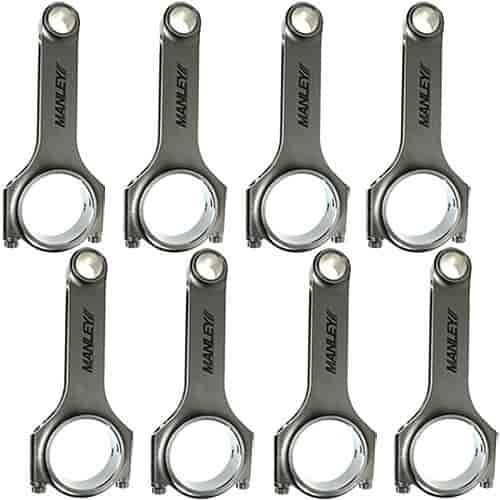

Ford 4.6L Modular H-Beam Connecting Rods 5.850" (Stroker) Center-to-Center

Name: Ford 4.6L Modular H-Beam Connecting Rods 5.850" (Stroker) Center-to-Center
Brand: MANLEY
SKU: 660-14044-8
Price: 882.53 USD
Availability: InStock

^$882⁵³

Ships on Sep 03, 2026

Lowest Price Guarantee

Standard Weight Series H-Beam Rods

Stroker Series

2.000'' SB-Chevy Crankshaft Journal

ARP 8740 Cap Screws

5.850'' (Stroker) Center-to-Center
2.000'' Crankshaft Journal Size (SB-Chevy)
2.125'' Big End Bore
22mm/0.8671'' Piston Pin Bore
3/8'' ARP 8740 Cap Screws
612 Grams
8/pkg.

*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.

Forged 4340 Steel Connecting Rods

The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market.

Features:

Manufactured from 4340 forgings
Heat treated, stress relieved, shot peened and 100% magnafluxed
Weight matched sets +/- 1.5 grams
Cap fasteners are premium 3/8'' ARP 8740 or optional ARP 2000 cap screws
Horsepower range: 700 HP (ARP 8740), 750 HP (ARP 2000)

Connecting Rod Common Specs:
Crankshaft Pin Diameter: 2.086'' (Stock 4.6L Modular Journal); 2.000'' (SB-Chevy Small Journal)
Crankshaft Pin Width: 0.940''
Piston Pin Diameter: 22mm/0.8671''
Piston Pin Width: 0.940''

Part TypeConnecting Rod

Product LineManley Ford 4.6L Modular H-Beam Connecting Rods

BrandMANLEY

Package Height4.3

Package Width9.0

Package Length11.3

Weight12.62 PG

Part CategoryPerformance Parts

Big End Bore Diameter2.125 in (53.975 mm)

Part FitmentSemi Universal

Big End Width0.94 in (23.876 mm)

ToolStroker Combinations
