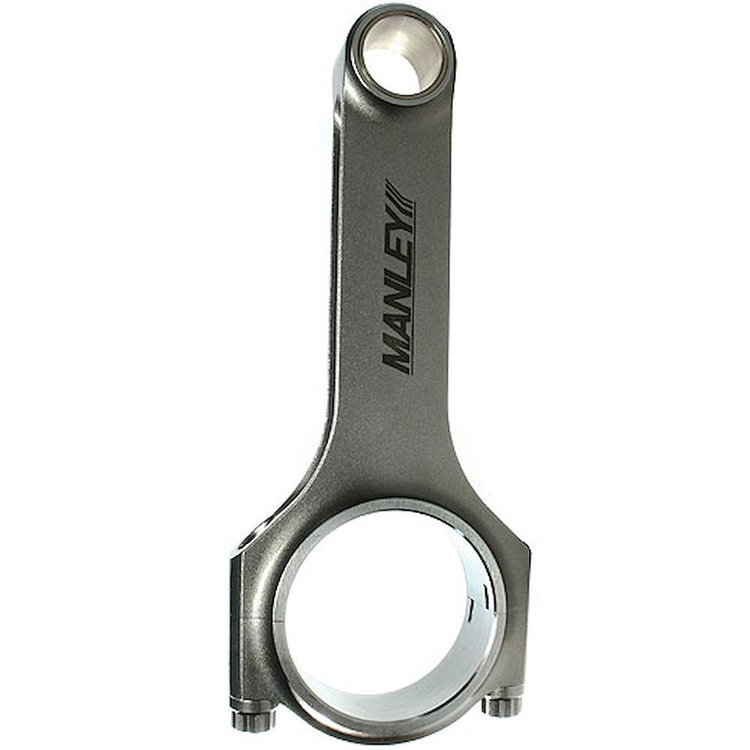

BB-Chevy H-Beam Connecting Rod 6.385" (+.250) Center-to-Center

Name: BB-Chevy H-Beam Connecting Rod 6.385" (+.250) Center-to-Center
Brand: MANLEY
SKU: 660-14062-1
Price: 103.73 USD
Availability: InStock

^$103⁷³

Ships on Sep 14, 2026

Lowest Price Guarantee

ARP 8740 Cap Screws

6.385'' (+.250) Center-to-Center
2.200'' Crankshaft Journal Size
2.325'' Big End Bore
0.9911'' Piston Pin Bore
7/16'' ARP 8740 Cap Screws
810 Grams
1/pkg.

*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.

Forged 4340 Steel Connecting Rods

The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market.

Features:

Manufactured from 4340 forgings
Heat treated, stress relieved, shot peened and 100% magnafluxed
Weight matched sets +/- 1.5 grams
Cap fasteners are premium 7/16'' ARP 8740 or optional ARP 2000 cap screws
Horsepower range: 900 HP (ARP 8740), 1200 HP (ARP 2000)

Connecting Rod Common Specs:
Crankshaft Pin Diameter: 2.200''
Crankshaft Pin Width: 0.991''
Piston Pin Diameter: 0.990''
Piston Pin Width: 1.125''

Part TypeConnecting Rod

Product LineManley Big Block Chevy H-Beam Connecting Rods

BrandMANLEY

Package Height1.5

Package Width4.3

Package Length10.4

Weight1.91 PG

Part CategoryPerformance Parts

Rod Journal Diameter2.2 in (55.9 mm)

Big End Bore Diameter2.325 in (59.055 mm)

Part FitmentSemi Universal

ToolStroker Combinations
