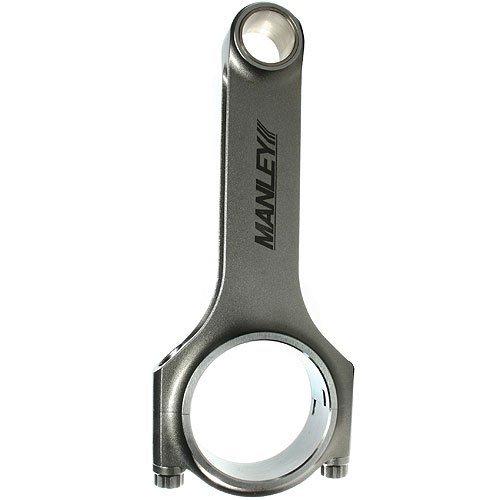

RHS LS Tall Deck Block H-Beam Connecting Rod Standard Weight Series

Name: RHS LS Tall Deck Block H-Beam Connecting Rod Standard Weight Series
Brand: MANLEY
SKU: 660-14064R-1
Price: 101.99 USD
Availability: InStock

^$101⁹⁹

Ships on Oct 05, 2026

Lowest Price Guarantee

2.100'' Crankshaft Journal

ARP 2000 Cap Screws

Standard Weight Series
6.300'' Center-to-Center
2.100'' Crankshaft Journal Size (No Offset)
2.225'' Big End Bore
0.9281'' Piston Pin Bore
7/16'' ARP 2000 Cap Screws
691 Grams
1/pkg

*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.

Forged 4340 Steel Connecting Rods

The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market. Note: Requires pistons ready to accept 6.125'' length rods. Stock LS-1 rods are 6.100'' long. Note the pin bore on part number 660-14051-8 is .9281''. Stock LS-1 pins are .945'' diameter. These rods are also provided with ''Low Profile'' cap screws enabling extra block and oil pan clearance on stroker applications.

Features:

Manufactured from 4340 forgings
Heat treated, stress relieved, shot peened and 100% magnafluxed
Weight matched sets +/- 1.5 grams
Cap fasteners are premium 7/16'' ARP 8740 or optional ARP 2000 cap screws
Horsepower range: Drag Race - 750 HP (ARP 8740), 900 HP (ARP 2000) / Oval Track - 725 HP (ARP 8740), 775 HP (ARP 2000)

Connecting Rod Common Specs:
