Vehicle Info NeededMANLEYPART NUMBER: 660-14069R-8

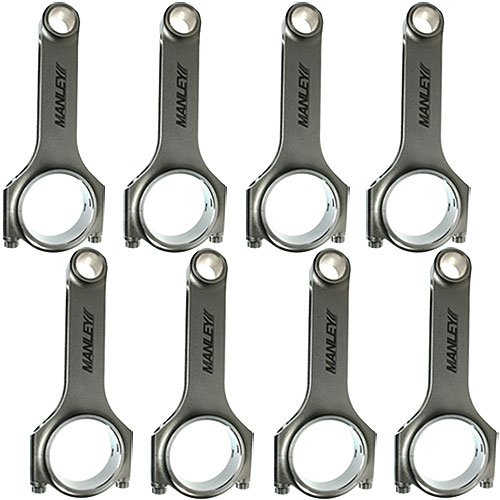

GM LSX Tall Deck Block H-Beam Connecting Rods Standard Weight Series
$81999
Ships on 10/01/2026
Lowest Price Guarantee2.100'' Crankshaft JournalARP 2000 Cap Screws
- GM LSX Tall Deck Block H-Beam Connecting Rods
- Standard Weight Series
- 6.460'' Center-to-Center
- 2.100'' Crankshaft Journal Size (No Offset)
- 2.225'' Big End Bore
- 0.9281'' Piston Pin Bore
- 7/16'' ARP 2000 Cap Screws
- 699 Grams
- 8/pkg
*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.
Part TypeConnecting Rod
BrandMANLEY
Part CategoryPerformance Parts
Rod Journal Diameter2.1 in (53.3 mm)
Big End Bore Diameter2.225 in (56.515 mm)
Part FitmentSemi Universal
Pin End Width1.06 in (26.9 mm)
Big End Width0.941 in (23.901 mm)
ToolStroker Combinations
Connecting Rod Length Center To Center6.46 in (164.084 mm)
Vendor Part Number14069R-8
Package Qty1
Package TypeEA
