Product Discontinued
MANLEYPART NUMBER: 660-14140-8

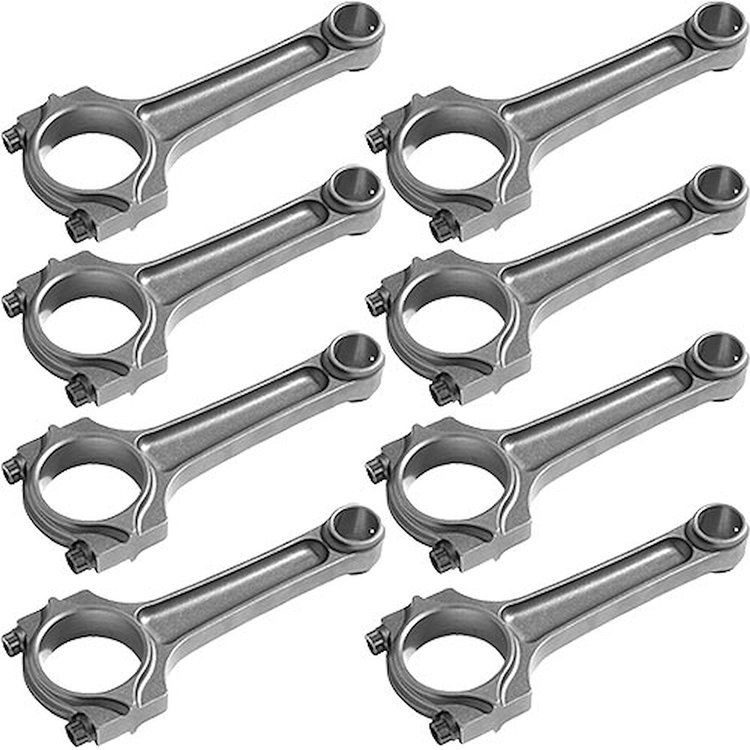

SB-Chevy Tour Lite I-Beam Connecting Rods 5.700" (Stock) Center-to-Center
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Large Crankshaft Journal
SB-Chevy Tour Lite I-Beam Connecting Rods5.700'' (Stock) Center-to-Center 2.100'' Crankshaft Journal Size (Large) 2.225'' Big End Bore 0.9281'' Piston Pin Bore 516 Grams 8/pkg.
MANLEY 14140-8 Features:
Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.Forged 4340 Steel Connecting Rods
The Manley Pro Series I-Beam rod has become the benchmark for fully machined/billet style high end connecting rods in the performance industry. Lightweight and standard weight designs targeting specific markets combined with their expertly refined manufacturing process renders a truly outstanding product. Whether it is Manley's Super Stock Legal rods in your wheels up class racer or a 4340 lightweight design rod in a twin turbo Chevy LS, Manley has the right connecting rod for you.
Show More
Features:
- Forged from 4340 aircraft quality vacuum degassed material
- Fully machined to produce the lightest and strongest rod possible
- Shot peened after machining to MIL spec and 100% individually magnafluxed
- Cap fasteners are 1.600'' under head length, 3/8'' ARP 2000 cap screws
- Horsepower range - 600+ HP
Connecting Rod Common Specs: - Crankshaft Pin Diameter: 2.000'' (Small Journal); 2.100'' (Large Journal)
- Crankshaft Pin Width: 0.940''
- Piston Pin Diameter: 0.9281''
- Piston Pin Width: 0.980''
Part TypeConnecting Rod
Product LineManley Small Block Chevy Tour Lite I-Beam Connecting Rods
BrandMANLEY
Package Height4.5
Package Width9.0
Package Length10.0
Weight12.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
ToolStroker Combinations
Vendor Part Number14140-8
Package Qty1
Package TypeEA
