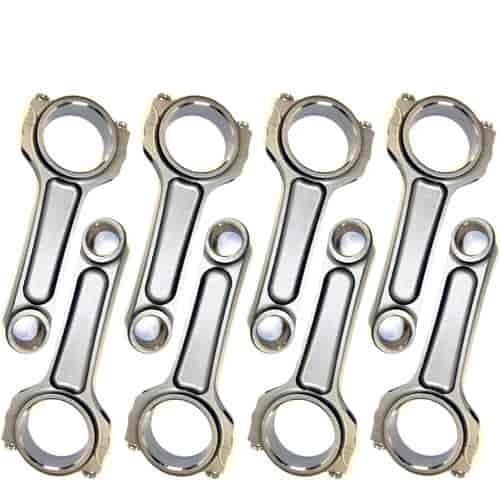

BB-Chevy Pro Series I-Beam Connecting Rods SB-Chevy Large Journal

Name: BB-Chevy Pro Series I-Beam Connecting Rods SB-Chevy Large Journal
Brand: MANLEY
SKU: 660-14266-8
Price: 1955.07 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

2.100'' Crankshaft Journal Size

Horsepower Rating: 1000 HP Drag Race; 850 HP Oval Track

SB-Chevy Large Journal
6.535'' (+.400) Center-to-Center
2.100'' Crankshaft Journal Size
2.225'' Big End Bore
0.9911'' Piston Pin Bore
1000HP Drag Race; 850HP Oval Track
735 Grams
8/pkg.

*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.

Forged 4340 Steel Connecting Rods

The Manley Pro Series I-Beam rod has become the benchmark for fully machined/billet style high end connecting rods in the performance industry. Lightweight and standard weight designs targeting specific markets combined with their expertly refined manufacturing process renders a truly outstanding product. Whether it is Manley's Super Stock Legal rods in your wheels up class racer or a 4340 lightweight design rod in a twin turbo Chevy LS, Manley has the right connecting rod for you.

Features:

Forged from 4340 aircraft quality vacuum degassed material
Fully machined to produce the lightest and strongest rod possible
Shot peened after machining to MIL spec and 100% individually magnafluxed
Cap fasteners are 7/16'' ARP 2000 cap screws
Horsepower range listed in description - 1000 to 1500 HP Drag Race; 850 to 1000 HP Oval Track

Connecting Rod Common Specs:
