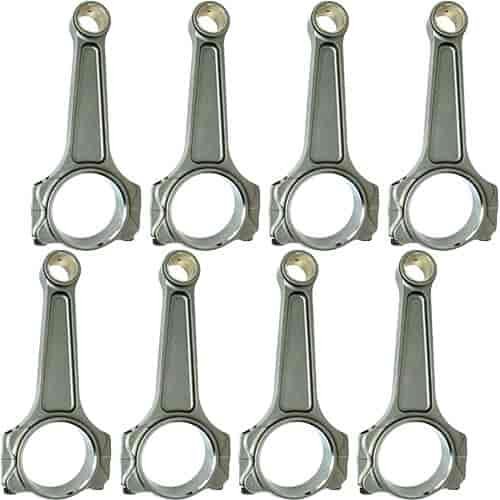

SB-Chevy Pro Series I-Beam Connecting Rods Lightweight Series

Name: SB-Chevy Pro Series I-Beam Connecting Rods Lightweight Series
Brand: MANLEY
SKU: 660-14450-8
Price: 1827.44 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Lightweight Series I-Beam Rods

Small Crankshaft Journal

Lightweight Series
5.700'' (Stock) Center-to-Center
2.000'' Crankshaft Journal Size (Small)
2.125'' Big End Bore
0.9281'' Piston Pin Bore
612 Grams
8/pkg.

NHRA legal for Stock and Super Stock Class.

Forged 4340 Steel Connecting Rods

The Manley Pro Series I-Beam rod has become the benchmark for fully machined/billet style high end connecting rods in the performance industry. Lightweight and standard weight designs targeting specific markets combined with their expertly refined manufacturing process renders a truly outstanding product. Whether it is Manley's Super Stock Legal rods in your wheels up class racer or a 4340 lightweight design rod in a twin turbo Chevy LS, Manley has the right connecting rod for you.

Features:

Forged from 4340 aircraft quality vacuum degassed material
Fully machined to produce the lightest and strongest rod possible
Shot peened after machining to MIL spec and 100% individually magnafluxed
Cap fasteners are 7/16'' ARP 2000 cap screws
Lightweight rod horsepower range - 750+ HP Oval Track; 800+ HP Drag Race
Standard weight rods horsepower range - 850+ HP Oval Track; 1000+ HP Drag Race (1500+ HP for 660-14554 rod)

Connecting Rod Common Specs:
Crankshaft Pin Diameter: 2.000'' (Small Journal); 2.100'' (Large Journal)
Crankshaft Pin Width: 0.940''
Piston Pin Diameter: 0.9281''
Piston Pin Width: 1.000''
