Features:

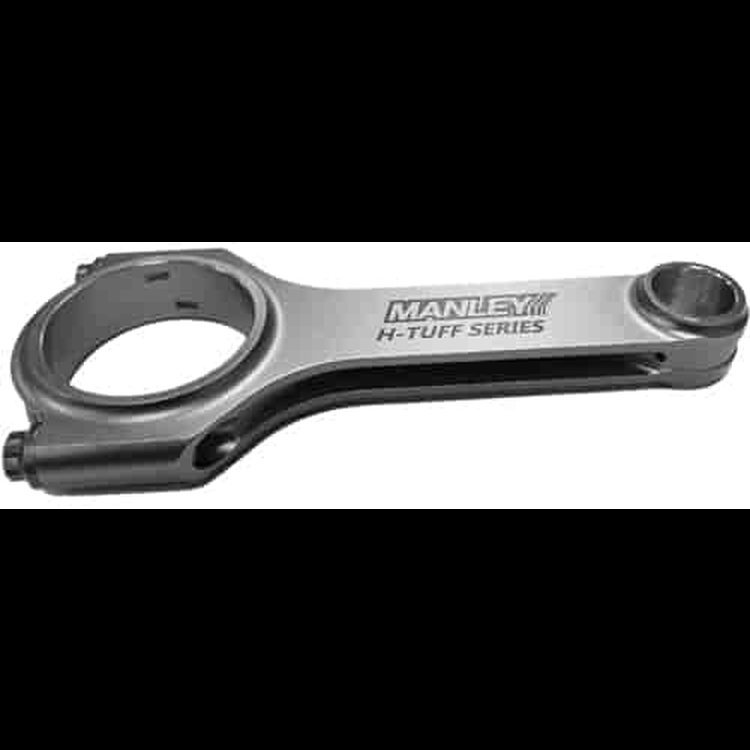

• Bridges the gap between Manely's standard H-beam and the top-of-the-line I-beam connecting rods
• An overall stronger rod and provides a greater safety margin over standard H-beam connecting rods to handle higher boost and horsepower levels
• Incorporates a wider beam and increased cross-sectional thickness in critical areas
• Ribbed pin surround
• Manufactured from 4340 forgings
• 6.125 in. center-to-center length (.025 in. longer than stock LS/LT1 connecting rods)
• 2.225 in. big end bore
• .941 in. big end width
• 1.060 in. pin end width
• .9457 in. pin bore
• 680 average gram weight
• Weight matched set is ± 1.5 grams
• Heat-treated, stress relieved, shot peened and 100% magnafluxed
• Cap fasteners are 7/16 (.4375) in. ARP 2000 bolts
• *Flywheel horsepower range:
  • 1,000 HP (Oval Track)
  • 1,200+ HP (Drag Race)
    • *Horsepower range could be exceeded depending upon rpm, stroke, piston weight, and power adders

Note: For Small Block Chevy LS/LT1 engines with pistons ready to accept 6.125 in. length rods. Stock LS / LT1 rods are 6.100 in. long
