Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 5.0L Coyote

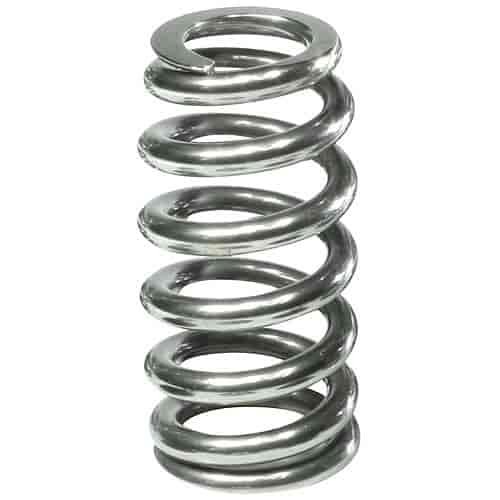

- NexTek H.P. Valve Spring
- 5.0L Coyote DOHC 4V
- 1.101'' O.D.
- 0.650'' I.D.
- 258 lbs./in. Spring Rate
- 120 @ 1.640'' Installed
- 275 @ 1.040'' Open
- 0.600'' Max Valve Lift
- 0.970'' Coil Bind
- Single Conical Ovate Wire
- 1/pkg.
Ford 5.0L Coyote DOHC 4-Valve high performance hydraulic roller applications. Ideal for boosted applications.
- Type of Spring: Single Conical Ovate Wire
- Color Code: N/A
- Installed Height and Pressure: 1.640' @ 120 lbs./in.
- Open Height and Pressure: 1.040' @ 275 lbs./in.
- Spring Rate: 258 lbs./in.
- O.D. of Outer Spring: 1.013' Top / 1.101' Bottom
- I.D. of Outer Spring: 0.650' Top / 0.738' Bottom
- I.D. of Middle Spring: N/A
- I.D. of Inner Spring: N/A
- Coil Bind height: 0.970'
- Weight: 49 grams
- Damper Included: No
Click Here to see 660-221419 Valve Spring Load Chart
Part TypeValve Spring
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
