Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

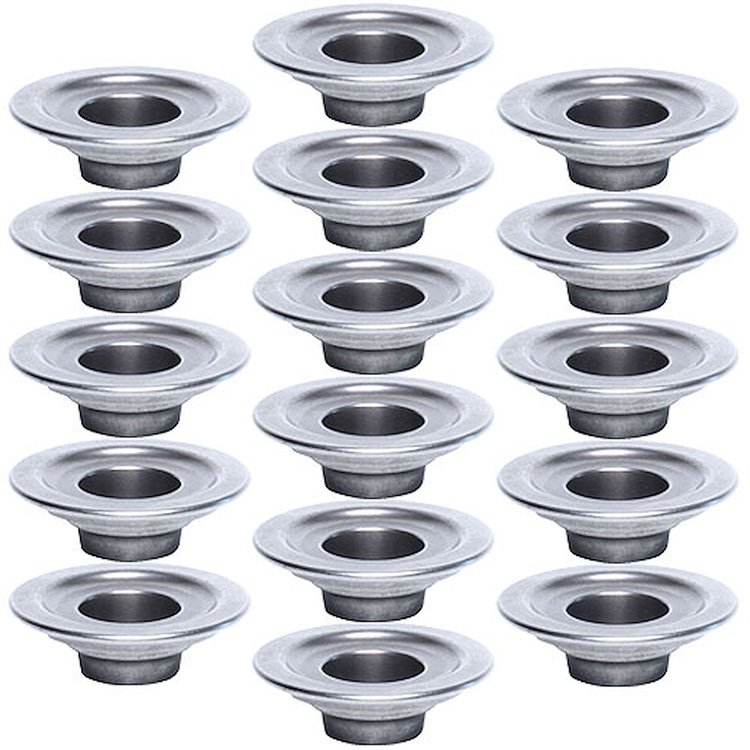

1.570'' Spring O.D.
- TensileMax Steel Retainers
- Lightweight
- 1.570'' Spring O.D.
- Double Spring Type
- (A) 1.440'' O.D.
- (B) 1.140'' I.D.
- (C) 0.745'' I.D.
- Standard Height
- Super 7° Keeper Degree
- 19 Grams
- 16/pkg.
This retainer is ideal for use with valve spring: - Manley p/n 660-221440P
Demand The Very Best...
Manley TensileMax Steel Retainers are made for maximum strength and durability. Carefully crafted in Manley's own CNC turning centers, these retainers offer excellent strength and feature Manley's impingement surface process for an overall 20% improvement in resistance to abrasion, a 30% improvement in fatigue strength.
Show More
Features:
- Manufactured from Manley's incredibly TensileMax alloy
- Designed to be as light as standard titanium retainers and very close in weight to lightweight titanium versions (within 2-4 grams)
- Specially heat treated to provide a hardness of Rc 52-54 and prevent retainer wear
- Exclusive process yields a part that provides the optimum balance between ultimate strength, fatigue strength, hardness and ductility
- Unique impingement process developed specifically for the TensileMax alloy and hardness range to improve fatigue strength and promote better oiling between the spring and retainer
Part TypeValve Spring Retainer
Product LineManley TensileMax Steel Retainers
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number23705LTM-16
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
