Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

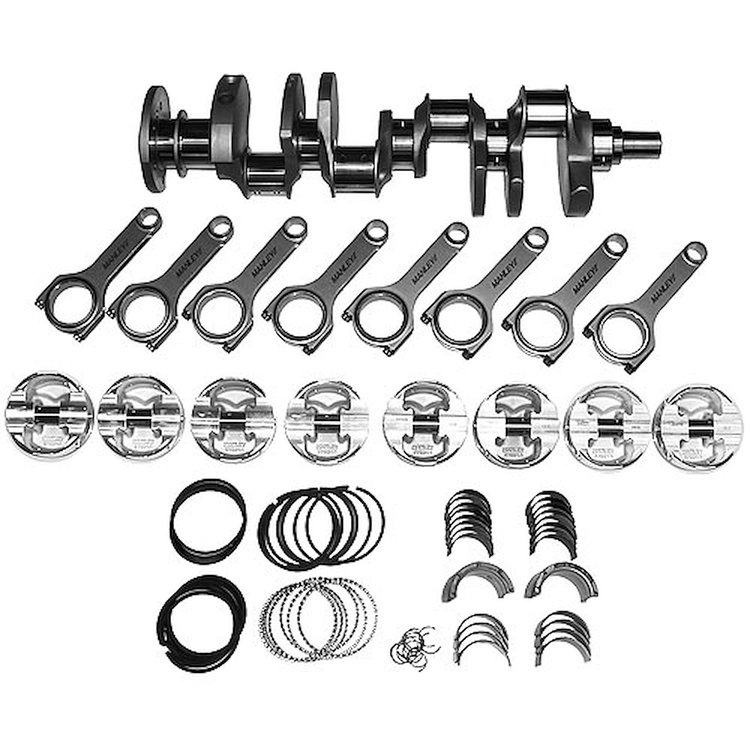

434ci Assemblies- 20cc Dish Top Pistons H-Beam Series Connecting Rods
- Small Block Chevy Rotating Assembly
- 434ci
- 4.155'' Bore (+.030'')
- 4.000'' Stroke
- 6.000'' Rod Length, H-Beam Connecting Rods
- Dish Top -20cc
- 11.0:1 w/58cc
- 10.3:1 w/64cc
- 9.3:1 w/76cc
- 1/16'', 1/16'', 3/16'' Piston Rings
Designed for use with a 400 engine block and 350 main journal diameters.
Piston Technical Specs: - Compression Height: 1.000'
- Compression Ratio: 11.0:1 w/ 58cc Combustion Chamber; 10.3:1 w/ 64cc Combustion Chamber; 9.3:1 w/ 76cc Combustion Chamber & 4.000' Stroke
- Piston & Pin Weight: 516 grams
- Dish Top: -20.0cc
- Pin Size: 0.927' dia., 2.450' long, .150' wall
- Round Wire Locks: .061'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Piston Clearance: .005' measured 1.100' from bottom of the oil ring
- Valve Notches: .300' Intake, .230' Exhaust
Part TypeEngine Rotating Assembly Kit
BrandMANLEY
Package Height6.2
Package Width19.5
Package Length25.5
Weight52.3 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number290230
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
