Small Block Chevy Rotating Assembly 355ci

Name: Small Block Chevy Rotating Assembly 355ci
Brand: MANLEY
SKU: 660-290860
Price: 3867.37 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

355ci Assemblies

- 4cc Flat Top Pistons

I-Beam Pro Series Lightweight Connecting Rods

355ci
4.060'' Bore (+.060'')
3.480'' Stroke
6.000'' Rod Length, I-Beam Connecting Rods
Flat Top -4cc
11.2:1 w/58cc
10.4:1 w/64cc
9.1:1 w/76cc
1/16'', 1/16'', 3/16'' Piston Rings

Designed for use with a 350 engine block and 350 main journal diameters.
Piston Technical Specs:
Compression Height: 1.250'
Piston & Pin Weight: 510 grams
Flat Top: -4.0cc valve reliefs
Pin Size: 0.927' dia, 2.300' long, .130' wall
Round Wire Locks: .061'
Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .300' Intake, .190' Exhaust

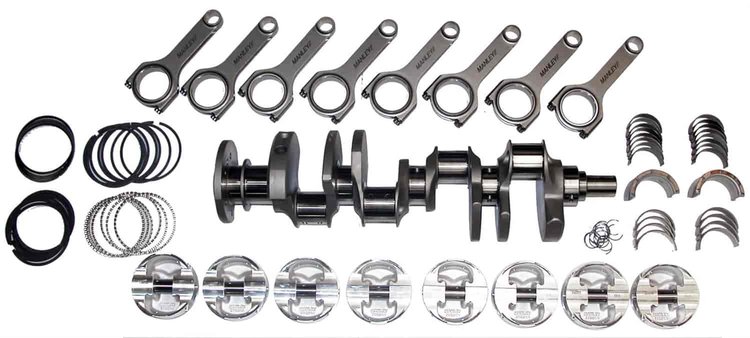

Components included in this rotating assembly
SB-Chevy Crankshaft - 2-Piece Rear Seal (p/n 660-190190)
SB-Chevy Pro Series I-Beam Connecting Rods (p/n 660-14354-8)
Small Block Chevy '4 Barrel Class' Flat Top Pistons (p/n 660-590660-8)
