Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

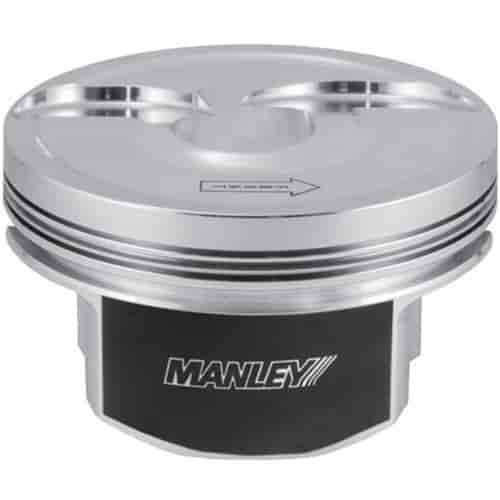

Extreme Duty Pistons
Extreme Duty Pistons Gen V LT1 Engine Bore: 4.065 in. (Standard) Stroke 3.622 in. Rod Length: 6.125 in. Head Volume: -2cc Dome Compression Ratio: 11.7 w/ 60cc Heads Set of 8
Technical Specs:
- Bore: 4.065"
- Stroke: 3.622"
- Rod Length: 6.125"
- Piston Head Volume: -2cc Dome
- Compression Height: 1.304"
- Wrist Pin: .927" floating
- Weight: 498 grams
- Compression Ratio @ 60cc: 11.7
- Piston rings: 1.2mm, 1.2mm, 3.0mm (660-46016-8 - Ductile Iron Top Ring)
- Moly coated skirts
- 9310 alloy wrist pins (2.300" x .170" wall)
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number560065CE-8
Package Qty1
Package TypeEA
