Vehicle Info NeededMANLEYPART NUMBER: 660-560165C-8

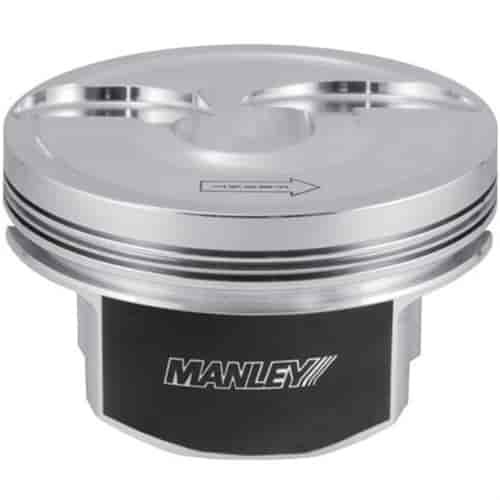

Standard Duty Pistons for Gen V LT1
$88940
Ships on 09/09/2026
Lowest Price GuaranteeStandard Duty Pistons
Standard Duty Pistons Gen V LT1 Engine Bore: 4.065 in. (Standard) Stroke 3.622 in. Rod Length: 6.125 in. Head Volume: -12cc Dish Compression Ratio: 10.5 w/ 60cc Heads Set of 8
Technical Specs:
- Bore: 4.065"
- Stroke: 3.622"
- Rod Length: 6.125"
- Piston Head Volume: -12cc Dish
- Compression Height: 1.304"
- Wrist Pin: .927" floating
- Weight: 469 grams
- Compression Ratio @ 60cc: 10.5
- Piston rings: 1.2mm, 1.2mm, 3.0mm (660-46016-8 - Ductile Iron Top Ring)
- Moly coated skirts
- Premium chrome moly wrist pins
Part TypePiston
BrandMANLEY
Package Height8.4
Package Width9.3
Package Length9.5
Weight11.33 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number560165C-8
Package Qty1
Package TypeEA
