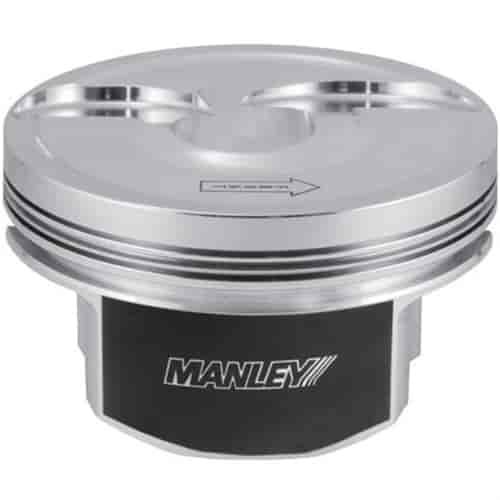

Standard Duty Pistons for Gen V LT1

Name: Standard Duty Pistons for Gen V LT1
Brand: MANLEY
SKU: 660-560265C-8
Price: 889.40 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Standard Duty Pistons

Gen V LT1 Engine

Bore: 4.065 in. (Standard)

Stroke 4.000 in.

Rod Length: 6.125 in.

Head Volume: -10cc Dish

Compression Ratio: 11.7 w/ 60cc Heads

Set of 8

Technical Specs:

Bore: 4.065"
Stroke: 4.000"
Rod Length: 6.125"
Piston Head Volume: -10cc Dish
Compression Height: 1.115"
Wrist Pin: .927" floating
Weight: 439 grams
Compression Ratio @ 60cc: 11.7
Piston rings: 1.2mm, 1.2mm, 3.0mm (660-46016-8 - Ductile Iron Top Ring)
Moly coated skirts
Premium chrome moly wrist pins

Bullet-proof your direct injected Gen V LT engine's bottom-end with high quality components from Manley. High strength 2618 alloy forged pistons can withstand the abuse from extreme racing applications. Offered with two different wrist pin types, the Standard Duty Series include a premium chrome moly pin, while the Extreme Duty Series includes a 9310 alloy pin. Manley pistons offer moly coated skirts and exacting ring groove squareness to cylinder wall for maximum horsepower.

Part TypePiston

Product LineManley Gen V LT1 Forged Pistons

BrandMANLEY

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number560265C-8

Package Qty1

Package TypeEA
