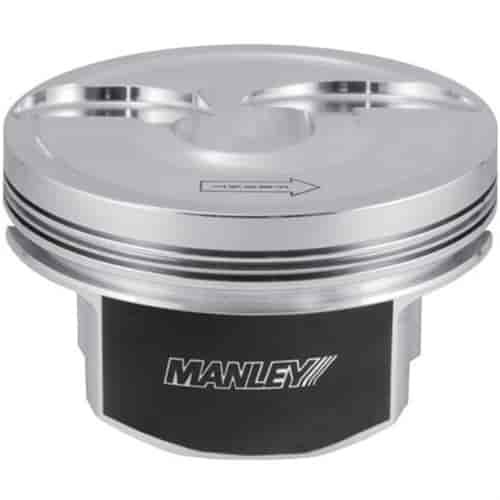

Standard Duty Pistons
Standard Duty Pistons Gen V LT1 Engine Bore: 4.135 in. Stroke 4.000 in. Rod Length: 6.125 in. Head Volume: -20cc Dish Compression Ratio: 10.9 w/ 60cc Heads Set of 8
Technical Specs:
- Bore: 4.135"
- Stroke: 4.000"
- Rod Length: 6.125"
- Piston Head Volume: -20cc Dish
- Compression Height: 1.115"
- Wrist Pin: .927" floating
- Weight: 449 grams
- Compression Ratio @ 60cc: 10.9
- Piston rings: 1.2mm, 1.2mm, 3.0mm (660-46062-8 - Ductile Iron Top Ring)
- Moly coated skirts
- Premium chrome moly wrist pins
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number560510C-8
Package Qty1
Package TypeEA
