MANLEYPART NUMBER: 660-590530-8

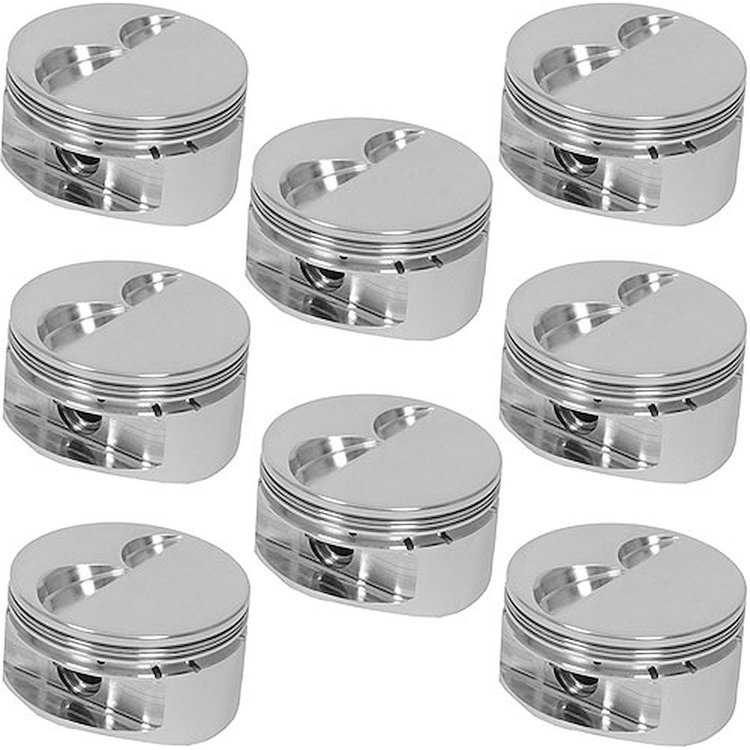

4 Barrel Class Pistons SB-Chevy

Name: 4 Barrel Class Pistons SB-Chevy
Brand: MANLEY
SKU: 660-590530-8
Price: 742.16 USD
Availability: InStock

^$742¹⁶

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Flat Top Pistons

1/16'', 1/16'', 3/16'' Ring Grooves

5.700'' Rod Length

3.480'' - 3.500'' Stroke

SB-Chevy
Flat Top -4.0cc
4.030'' Bore (+.030'')
5.700'' Rod Length with 3.480-3.500'' Stroke
1.550'' Comp. Height
1/16'', 1/16'', 3/16'' Ring Grooves
8/pkg.

Technical Specs:
Compression Height: 1.550'
Piston & Pin Weight: 553 grams
Flat Top: -4.0cc valve reliefs
Pin Size: 0.927' dia, 2.300' long, .130' wall
Round Wire Locks: .061'
Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .300' Intake, .190' Exhaust

Part TypePiston

BrandMANLEY

Package Height7.9

Package Width9.2

Package Length9.3

Weight10.65 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberPIST-1.550 CD/FT 4.030

Package Qty1

Package TypeEA
