Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

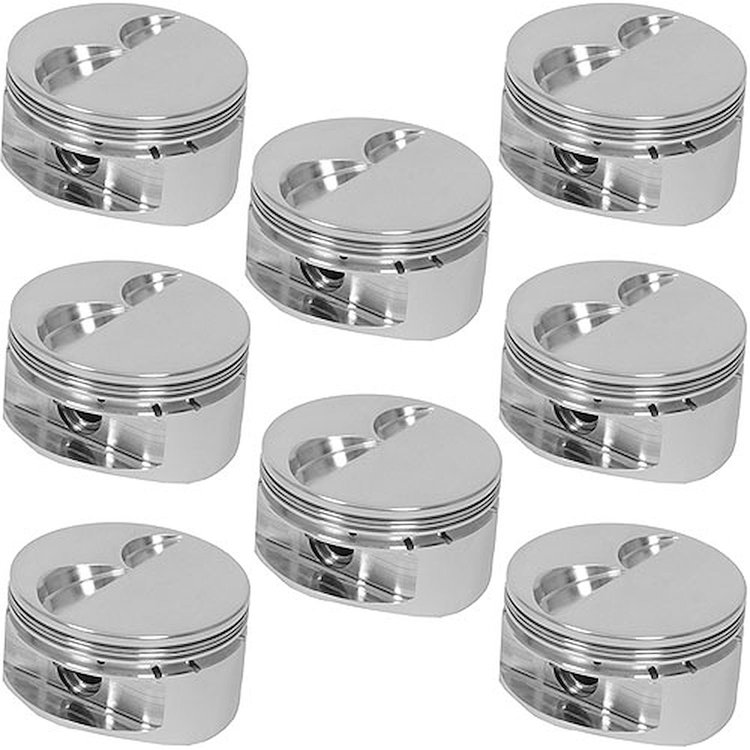

Flat Top Pistons1/16'', 1/16'', 3/16'' Ring Grooves 5.700'' Rod Length 3.480'' - 3.500'' Stroke
- 4 Barrel Class Piston
- SB-Chevy
- Flat Top -4.0cc
- 4.045'' Bore (+.045'')
- 5.700'' Rod Length with 3.480-3.500'' Stroke
- 1.550'' Comp. Height
- 1/16'', 1/16'', 3/16'' Ring Grooves
- 8/pkg.
Technical Specs: - Compression Height: 1.550'
- Piston & Pin Weight: 560 grams
- Flat Top: -4.0cc valve reliefs
- Pin Size: 0.927' dia, 2.300' long, .130' wall
- Round Wire Locks: .061'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Piston Clearance: .005' measured 1.100' from bottom of the oil ring
- Valve Notches: .300' Intake, .190' Exhaust
Part TypePiston
BrandMANLEY
Package Height2.8
Package Width4.3
Package Length4.3
Weight1.2 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number590545-8
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
