Product Discontinued

MANLEYPART NUMBER: 660-590840R-1

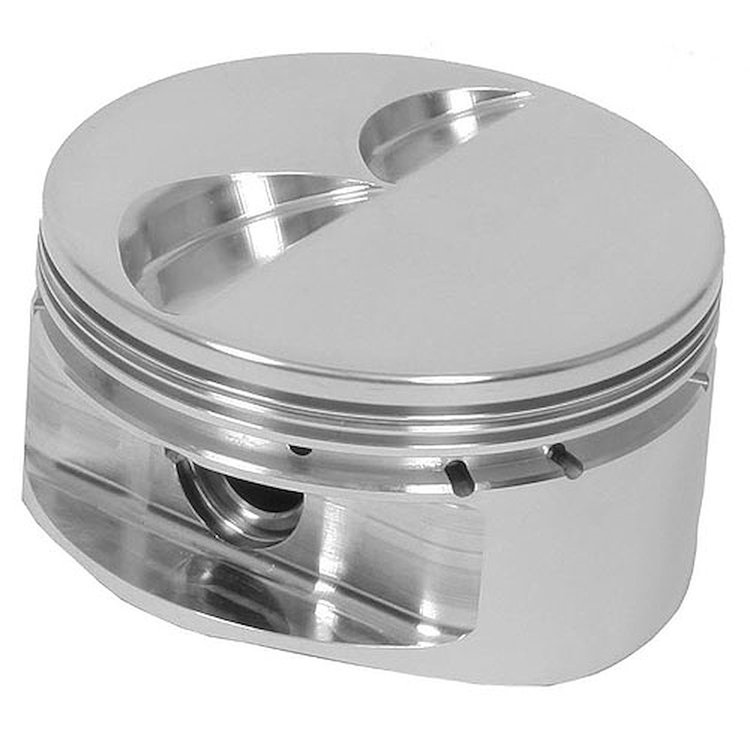

4 Barrel Class Piston SB-Chevy

Name: 4 Barrel Class Piston SB-Chevy
Brand: MANLEY
SKU: 660-590840R-1
Price: 97.25 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Flat Top Pistons

1/16'', 1/16'', 3/16'' Ring Grooves

6.000'' Rod Length with 3.750'' Stroke

6.125'' Rod Length with 3.480-3.500'' Stroke

SB-Chevy
Flat Top -4.0cc
4.040'' Bore (+.040'')
6.000'' Rod Length w/3.750'' Stroke
6.125'' Rod Length w/3.480-3.500'' Stroke
1.125'' Comp. Height
1/16'', 1/16'', 3/16'' Ring Grooves
Right Side, 1/pkg.

Technical Specs:
Compression Height: 1.125'
Piston & Pin Weight: 496 grams
Flat Top: -4.0cc valve reliefs
Pin Size: 0.927' dia, 2.300' long, .130' wall
Round Wire Locks: .061'
Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .300' Intake, .190' Exhaust

Part TypePiston

BrandMANLEY

Package Height4.25

Package Width5.5

Package Length7.75

Weight1.25 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number590840R-1

Package Qty1

Package TypeEA
