Product Discontinued

MANLEYPART NUMBER: 660-591330-8

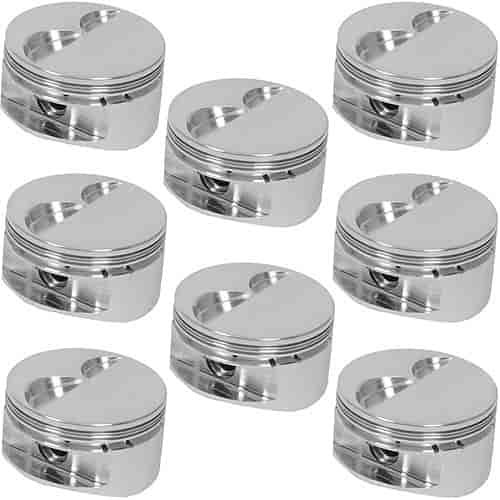

2 Barrel Class Pistons SB-Chevy

Name: 2 Barrel Class Pistons SB-Chevy
Brand: MANLEY
SKU: 660-591330-8
Price: 851.80 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Flat Top Pistons

Gas Ported .043'', .043'', 3mm Ring Grooves

6.200'' Rod Length

3.480'' - 3.500'' Stroke

SB-Chevy
Flat Top -2.5cc
4.030'' Bore (+.030'')
6.200'' Rod Length with 3.480-3.500'' Stroke
1.050'' Comp. Height
.043'', .043'', 3mm Ring Grooves
8/pkg.

Technical Specs:
Compression Height: 1.050'
Piston & Pin Weight: 439 grams
Flat Top: -2.5cc valve reliefs
Pin Size: 0.927' dia, 2.300' long, .095' wall
Round Wire Locks: .061'
Ring Grooves: Gas Ported .043' Top; .043' Middle; 3mm Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .210' Intake, .150' Exhaust

Part TypePiston

BrandMANLEY

Package Height7.75

Package Width9.0

Package Length9.0

Weight10.0 PG

Part FitmentDirect Fit

Vendor Part Number591330-8

Package Qty1

Package TypeEA
