Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

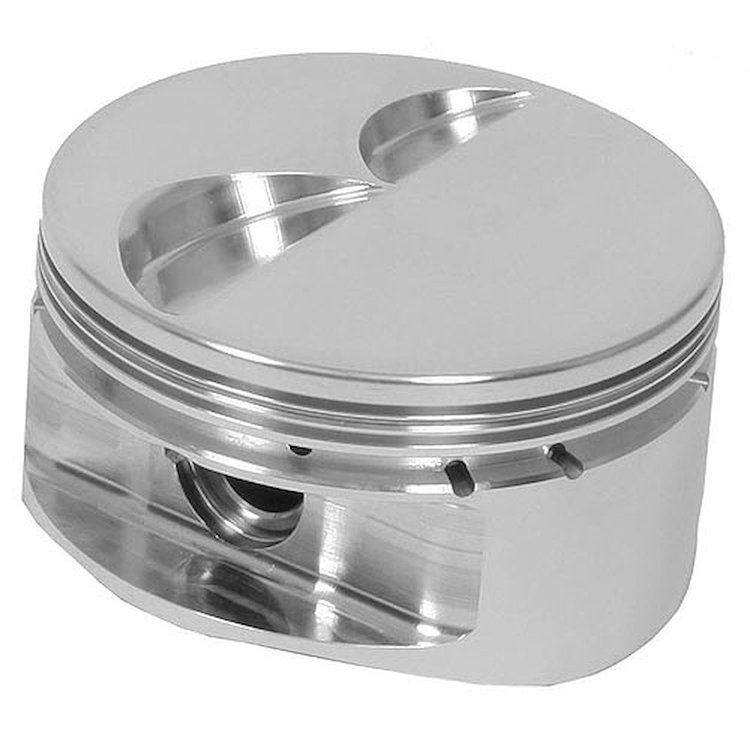

Flat Top PistonsGas Ported .043'', .043'', 3mm Ring Grooves 6.200'' Rod Length 3.480'' - 3.500'' Stroke
- 2 Barrel Class Piston
- SB-Chevy
- Flat Top -2.5cc
- 4.040'' Bore (+.040'')
- 6.200'' Rod Length with 3.480-3.500'' Stroke
- 1.050'' Comp. Height
- .043'', .043'', 3mm Ring Grooves
- Left Side, 1/pkg.
Technical Specs: - Compression Height: 1.050'
- Piston & Pin Weight: 441 grams
- Flat Top: -2.5cc valve reliefs
- Pin Size: 0.927' dia, 2.300' long, .095' wall
- Round Wire Locks: .061'
- Ring Grooves: Gas Ported .043' Top; .043' Middle; 3mm Bottom
- Piston Clearance: .005' measured 1.100' from bottom of the oil ring
- Valve Notches: .210' Intake, .150' Exhaust
Part TypePiston
BrandMANLEY
Package Height4.25
Package Width5.5
Package Length7.75
Weight1.25 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number591340L-1
Package Qty1
Package TypeEA
