Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Dome Pistons1.5mm, 1.5mm, 3mm Ring Grooves 6.000'' Rod Length 3.750'' Stroke

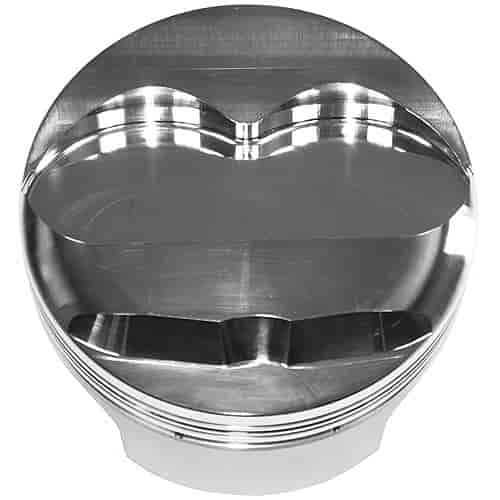

- 4-Inch Bore Dome Piston
- SB-Chevy
- 11cc Symmetrical Dome
- 4.030'' Bore (+.030'')
- 6.000'' Rod Length
- 3.750'' Stroke
- 1.125'' Comp. Height
- 1.5mm, 1.5mm, 3mm Ring Grooves
- 1/pkg.
Technical Specs: - Compression Height: 1.125'
- Compression Ratio: 14.9:1 w/ 58cc, 13.5:1 w/ 64cc, 11.5:1 w/ 76cc Combustion Chamber
- Piston & Pin Weight: 582 grams
- Dome Top: 11.0cc symmetrical design
- Pin Size: 0.927' dia, 2.300' long, .150' wall
- Round Wire Locks: .061'
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
- Piston Clearance: .005' measured 1.100' from bottom of the oil ring
- Valve Notches: Two Intake Notches, .275' deep
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number591830-1
Package Qty1
Package TypeEA
