Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
-4cc Flat Top Pistons6.098'' Rod Length

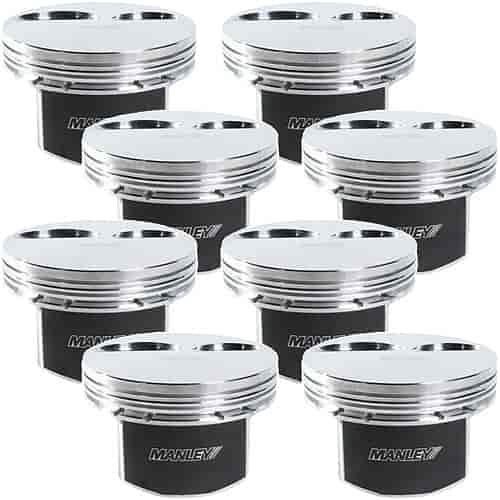

- Chevrolet LS 3.622 Stroke Flat Top Pistons
- -4cc Flat Top
- 3.905'' Bore
- 3.622'' Stroke
- 6.098'' Rod
- 1.340'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio: 10.2:1 (64cc), 10.0:1 (66cc), 9.5:1 (70cc), 9.3:1 (72cc)
- Compression Height: 1.340'
- Valve Pocket Type: LS1, LS2, LS6
- Valve Pocket Depth: .175' Intake / .150' Exhaust
- Piston and Pin Weight: 518 grams
- Flat Top: -4cc
- Pin Size: 24mm/.945' dia., 2.300' long, .120' wall (90 grams)
- Spiral Locks: .061' wide
- Ring Grooves: 1.5mm Top (.225' down); 1.5mm Middle; 3mm Bottom
- Piston Clearance: .0045' measured 1.100' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Package Height8.2
Package Width9.1
Package Length9.2
Weight10.03 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number592007C-8
Package Qty1
Package TypeEA
