Vehicle Info NeededMANLEYPART NUMBER: 660-592530C-8

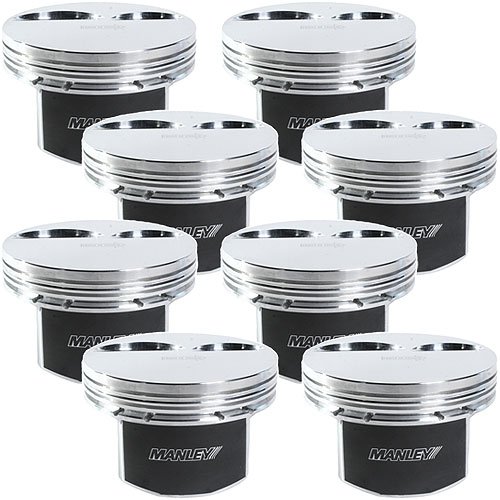

Chevrolet LS 3.622 Stroke Flat Top Pistons -4cc Flat Top
$88940
Ships on 09/09/2026
Lowest Price Guarantee-4cc Flat Top Pistons6.125'' Rod Length
- Chevrolet LS 3.622 Stroke Flat Top Pistons
- -4cc Flat Top
- 4.030'' Bore
- 3.622'' Stroke
- 6.125'' Rod
- 1.304'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio: 10.8:1 (64cc), 10.6:1 (66cc), 10.1:1 (70cc), 9.9:1 (72cc)
- Compression Height: 1.304'
- Valve Pocket Type: LS1, LS2, LS3, LS6, L92
- Valve Pocket Depth: .185' Intake / .130' Exhaust
- Piston and Pin Weight: 544 grams
- Flat Top: -4cc
- Pin Size: .927' dia., 2.300' long, .130' wall (95 grams)
- Spiral Locks: .061' wide
- Ring Grooves: 1.5mm Top (.250' down); 1.5mm Middle; 3mm Bottom
- Piston Clearance: .0045' measured 1.100' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Package Height8.9
Package Width9.7
Package Length9.9
Weight10.89 PG
Vendor Part Number592530C-8
Package Qty1
Package TypeEA
