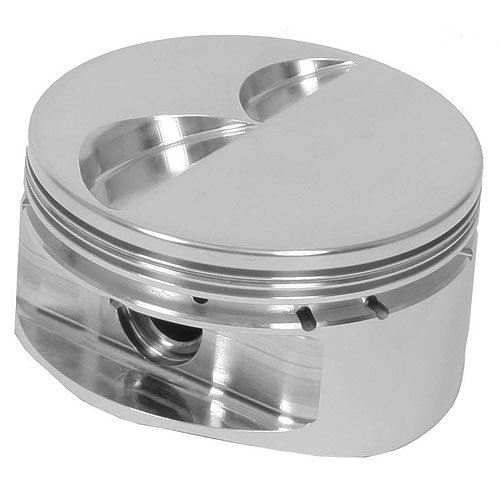

Ultra Lite " Formula-Won" Piston SB-Chevy

Vehicle Info Needed

MANLEYPART NUMBER: 660-593230L-1

Ultra Lite " Formula-Won" Piston SB-Chevy

Name: Ultra Lite " Formula-Won" Piston SB-Chevy
Brand: MANLEY
SKU: 660-593230L-1
Price: 97.99 USD
Availability: InStock

^$97⁹⁹

Ships on 09/28/2026

Lowest Price Guarantee

Flat Top Pistons

6.000'' Rod Length with 3.750'' Stroke

6.125'' Rod Length with 3.480-3.500'' Stroke

SB-Chevy
Flat Top -2.0cc
4.030'' Bore (+.030'')
6.000'' Rod Length with 3.750'' Stroke
6.125'' Rod Length with 3.480-3.500'' Stroke
1.125'' Comp. Height
Left Side, 1/pkg.

Technical Specs:
Compression Height: 1.125'
Piston & Pin Weight: 410 grams
Flat Top: -2.0cc valve reliefs
Pin Size: 0.927' dia, 2.300' long, .095' wall
Round Wire Locks: .061'
Ring Grooves: .043' Top; .043' Middle; 3mm Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .220' Intake, .150' Exhaust

Part TypePiston

BrandMANLEY

Package Height4.25

Package Width5.5

Package Length7.75

Weight1.25 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number593230L-1

Package Qty1

Package TypeEA
