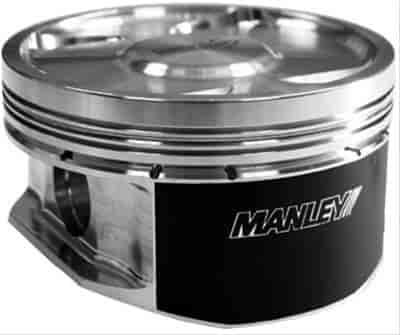

Ultra Lite " Formula-Won" Piston SB-Chevy

Product Discontinued

MANLEYPART NUMBER: 660-593435R-1

Ultra Lite " Formula-Won" Piston SB-Chevy

Name: Ultra Lite " Formula-Won" Piston SB-Chevy
Brand: MANLEY
SKU: 660-593435R-1
Price: 98.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dish Top Pistons

5.700'' Rod Length

3.480'' - 3.500'' Stroke

SB-Chevy
Dish Top -14.5cc
4.035'' Bore (+.035'')
5.700'' Rod Length
3.480-3.500'' Stroke
1.550'' Comp. Height
Right Side, 1/pkg.

Technical Specs:
Compression Height: 1.550'
Piston & Pin Weight: 495 grams
Dish Top: -14.5cc
Pin Size: 0.927' dia, 2.300' long, .095' wall
Round Wire Locks: .061'
Ring Grooves: .043' Top; .043' Middle; 3mm Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .300' Intake, .215' Exhaust

Part TypePiston

BrandMANLEY

Package Height4.25

Package Width5.5

Package Length7.75

Weight1.25 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number593435R-1

Package Qty1

Package TypeEA

No Questions

No Reviews
