Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

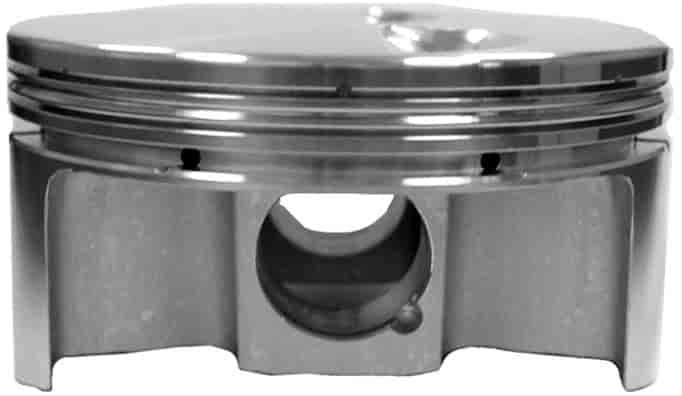

Dish Top Pistons6.000'' Rod Length 3.480'' - 3.500'' Stroke
- Ultra Lite ''Formula-Won'' Pistons
- SB-Chevy
- Dish Top -14.5cc
- 4.030'' Bore (+.030'')
- 6.000'' Rod Length
- 3.480-3.500'' Stroke
- 1.250'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Height: 1.250'
- Piston & Pin Weight: 454 grams
- Dish Top: -14.5cc
- Pin Size: 0.927' dia, 2.300' long, .095' wall
- Round Wire Locks: .061'
- Ring Grooves: .043' Top; .043' Middle; 3mm Bottom
- Piston Clearance: .005' measured 1.100' from bottom of the oil ring
- Valve Notches: .300' Intake, .215' Exhaust
Part TypePiston
BrandMANLEY
Package Height7.75
Package Width9.0
Package Length9.0
Weight10.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number593530-8
Package Qty1
Package TypeEA
