Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

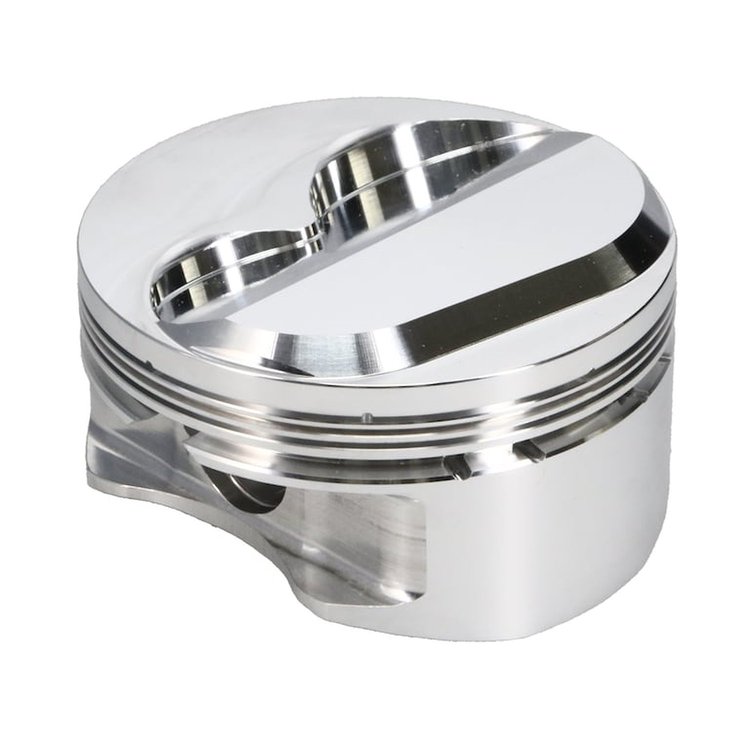

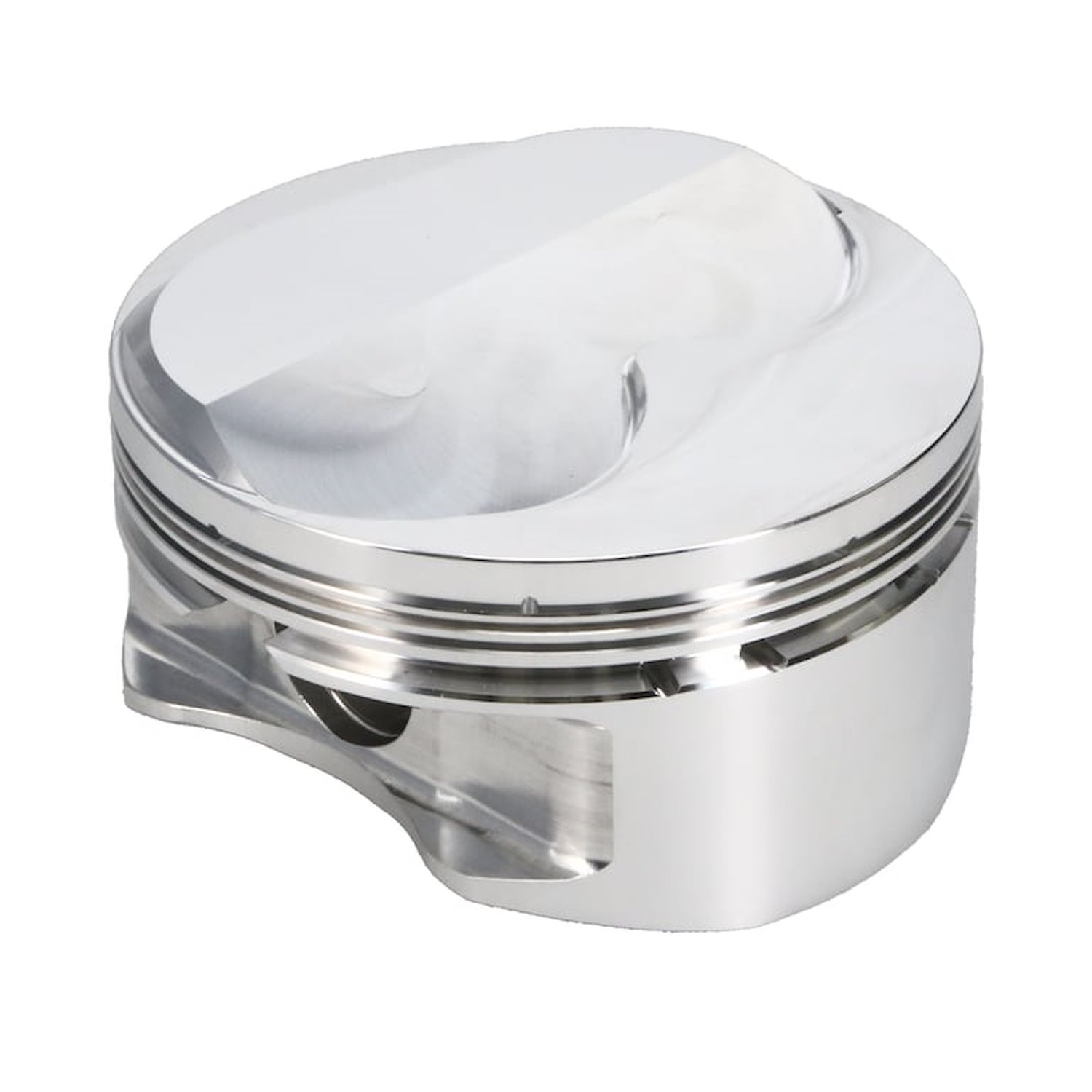

Dish Top Pistons1/16'', 1/16'', 3/16'' Ring Grooves 6.000'' Rod Length with 4.000'' Stroke 6.125'' Rod Length with 3.750'' Stroke
- 4.125-Inch Bore Dish Top Piston
- SB-Chevy
- Dish Top -20cc
- 4.155'' Bore (+.030'')
- 6.000'' Rod Length w/4.000'' Stroke
- 6.125'' Rod Length w/3.750'' Stroke
- 1.000'' Comp. Height
- 1/16'', 1/16'', 3/16'' Ring Grooves
- Left Side, 1/pkg.
Technical Specs: - Compression Height: 1.000'
- Compression Ratio: 10.3:1 w/ 64cc Combustion Chamber & 4.000' Stroke
- Piston & Pin Weight: 518 grams
- Dish Top: -20.0cc
- Pin Size: 0.927' dia., 2.450' long, .150' wall
- Round Wire Locks: .061'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Piston Clearance: .005' measured 1.100' from bottom of the oil ring
- Valve Notches: .300' Intake, .230' Exhaust
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number593930L-1
Package Qty1
Package TypeEA
