Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
18cc Spherical Dish Top Pistons5.933'' Rod Length w/3.543'' Stroke 6.657'' Rod Length w/4.165'' Stroke 1.220'' Compression Distance

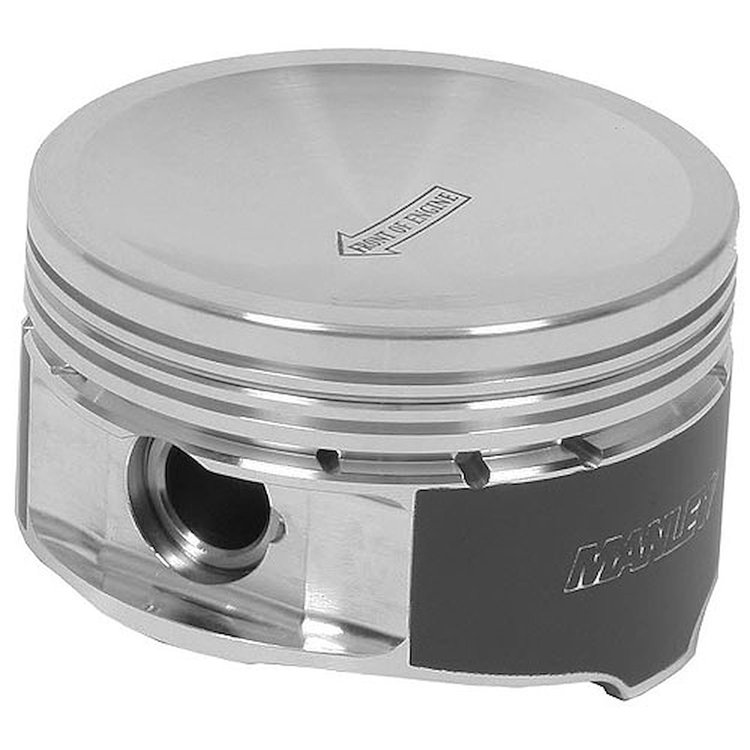

- Ford 4.6L/5.4L 2/4V & 5.4L 3V Dish Top Piston
- 18cc Spherical Dish
- 3.582'' Bore (+.030'')
- 5.933'' Rod w/3.543'' Stroke
- 6.657'' Rod w/4.165'' Stroke
- 1.220'' Comp. Height
- Moly Coated Skirt
- 1/pkg.
Technical Specs: - Compression Ratio, 5.933' Rod w/3.543' Stroke: 9.68:1 (42cc), 8.66:1 (51cc), 8.56:1 (52cc)
- Compression Ratio, 6.657' Rod w/4.165' Stroke: 9.01:1 (42cc), 8.25:1 (51cc), 8.17:1 (52cc)
- Compression Height: 1.220'
- Piston Weight: 393 grams
- Dish Top: 18cc Spherical
- Pin Size: 22mm dia, 2.500' long, .150' wall (106 grams)
- Spiral Locks: .061' wide
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
- Piston Clearance: .003' measured .850' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number594230C-1
Package Qty1
Package TypeEA
