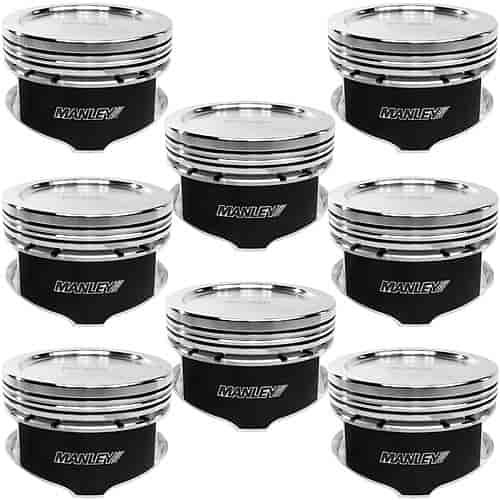

Ford 4.6L & 5.4L 3V Dish Top Pistons -6.5cc Dish
InfoVehicle Info Needed
MANLEYPART NUMBER: 660-594320C-8

Ford 4.6L & 5.4L 3V Dish Top Pistons -6.5cc Dish

$86678
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Piston Ring Filer & Grinder Tool 170/140 Grit

JEGS

Piston Ring Filer & Grinder Tool 170/140 Grit

Part Number : 555-80514
$4199$46.99
You Save$5.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52
Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00

-6.5cc Dish Top Pistons
  • 5.933'' Rod Length
  • 3.543'' Stroke
  • 1.220'' Compression Distance
    • Ford 4.6L & 5.4L 3V Dish Top Pistons
    • -6.5cc Dish
    • 3.572'' Bore (+.020'')
    • 3.543'' Stroke
    • 5.933'' Rod Length
    • 1.220'' Comp. Height
    • Moly Coated Skirt
    • 8/pkg.

      Technical Specs:
    • Compression Ratio: 9.95:1 (51cc)
    • Compression Height: 1.220'
    • Piston Weight: 362 grams
    • Dish Top: -6.5cc
    • Pin Size: 22mm dia, 2.500' long, .150' wall (106 grams)
    • Spiral Locks: .061' wide
    • Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
    • Piston Clearance: .003' measured .850' from bottom of the oil ring

    Platinum Series Pistons

    Professional engine builders and elite tuners around the world are running Manley pistons for some very good reasons. Manley uses domestic 2618 high strength alloy forgings and unique (to Manley) fixturing allowing skirt turning / ring groove machining be performed in one single operation to ensure the ultimate ring groove to skirt squareness for better ring seal. Cam and barrel (skirt) profiles that make power but are friendly on the cylinder walls. Manley is well known for their high quality valvetrain components, but insiders also trust and use Manleys top quality pistons and connecting rods.

    Show More

    Features:

    • Lightweight Design
    • 2618 High Strength Alloy
    • 1.2mm Offset Wrist Pin Location for Quiet Start-Ups. Mimics OEM Design
    • 1.5mm, 1.5mm, 3mm Ring Grooves
    • Perfect Ring Groove to Skirt Squareness
    • Round Wire Locks Included - .061'' wide
    • Pressure Balance Groove
    • Premium Chrome Moly Wrist Pin 22mm Diameter x 2.500'' Long x .150'' Wall
    • Full Banded Skirt Design for Increased Skirt Stability



      Piston Common Specs:
    • Dome Volume: -6.5cc, and -14cc Dish
    • Crown Thickness: .185''
    • Ring Thickness: Top Ring - 1.5mm (.220'' down); Second Ring - 1.5mm; Oil Ring - 3mm
    • Pin Included: Premium Chrome Moly 22mm dia, 2.500'' long, .150'' wall
    • Spiral Locks: .061'' wide
    • Recommended Piston Clearance: .003'' measured .850'' from bottom of the oil ring



    Part TypePiston
    Product LineManley Ford 4.6L & 5.4L 3V Dish Top Pistons
    BrandMANLEY
    Package Height8.2
    Package Width9.3
    Package Length9.5
    Weight9.31 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number594320C-8
    Package Qty1
    Package TypeEA
