Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
-6.5cc Dish Top Pistons5.933'' Rod Length 3.543'' Stroke 1.220'' Compression Distance

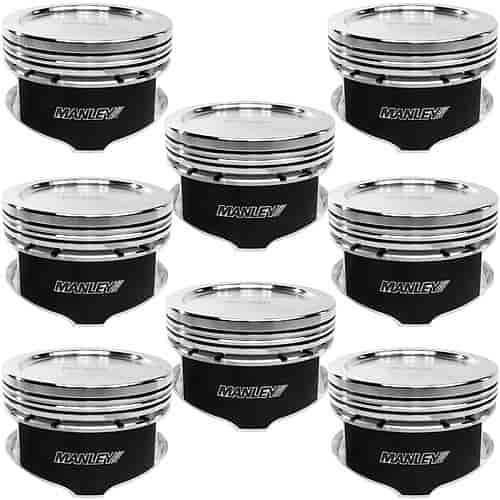

- Ford 4.6L & 5.4L 3V Dish Top Pistons
- -6.5cc Dish
- 3.582'' Bore (+.030'')
- 3.543'' Stroke
- 5.933'' Rod Length
- 1.220'' Comp. Height
- Moly Coated Skirt
- 8/pkg.
Technical Specs: - Compression Ratio: 10.00:1 (51cc)
- Compression Height: 1.220'
- Piston Weight: 367 grams
- Dish Top: -6.5cc
- Pin Size: 22mm dia, 2.500' long, .150' wall (106 grams)
- Spiral Locks: .061' wide
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
- Piston Clearance: .003' measured .850' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number594330C-8
Package Qty1
Package TypeEA
