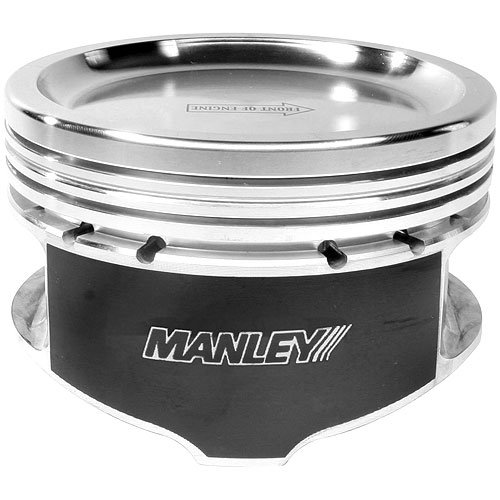

Ford 4.6L/5.4L 2/4V & 5.4L 3V Dish Top Piston 23cc Standard Dish

Name: Ford 4.6L/5.4L 2/4V & 5.4L 3V Dish Top Piston 23cc Standard Dish
Brand: MANLEY
SKU: 660-594420-1
Price: 83.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

23cc Dish Top Pistons

5.933'' Rod Length w/3.543'' Stroke

6.657'' Rod Length w/4.165'' Stroke

1.220'' Compression Distance

23cc Standard Dish
3.572'' Bore (+.020'')
5.933'' Rod w/3.543'' Stroke
6.657'' Rod w/4.165'' Stroke
1.220'' Comp. Height
1/pkg.

Technical Specs:
Compression Ratio, 5.933' Rod w/3.543' Stroke: 9.04:1 (42cc), 8.15:1 (51cc), 8.06:1 (52cc)
Compression Ratio, 6.657' Rod w/4.165' Stroke: 8.53:1 (42cc), 7.85:1 (51cc), 7.79:1 (52cc)
Compression Height: 1.220'
Piston Weight: 359 grams
Dish Top: 23cc
Pin Size: 22mm dia, 2.500' long, .150' wall (106 grams)
Spiral Locks: .061' wide
Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
Piston Clearance: .003' measured .850' from bottom of the oil ring
