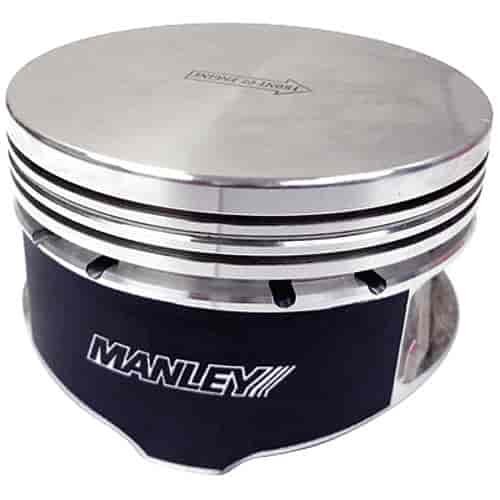

Ford 4.6L/5.4L 2/4V & 5.4L 3V Flat Top Piston Stroker Series

Name: Ford 4.6L/5.4L 2/4V & 5.4L 3V Flat Top Piston Stroker Series
Brand: MANLEY
SKU: 660-595000C-1
Price: 108.38 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Stroker Series Flat Top Pistons

5.850'' Rod Length w/3.750'' Stroke

1.200'' Compression Distance

Stroker Series
3.552'' Bore
5.850'' Rod w/3.750'' Stroke
1.200'' Comp. Height
1/pkg.

Technical Specs:
Compression Ratio, 5.850' Rod w/3.750' Stroke: 13.33:1 (42cc), 11.43:1 (51cc), 11.26:1 (52cc)
Compression Height: 1.200'
Piston Weight: 350 grams
Flat Top: 0cc
Pin Size: 22mm dia, 2.500' long, .150' wall (106 grams)
Spiral Locks: .061' wide
Ring Grooves: 1.5mm Top (.220' down); 1.5mm Middle; 3mm Bottom
Piston Clearance: .003' measured .850' from bottom of the oil ring

Platinum Series Pistons

Professional engine builders and elite tuners around the world are running Manley pistons for some very good reasons. Manley uses domestic 2618 high strength alloy forgings and unique (to Manley) fixturing allowing skirt turning / ring groove machining be performed in one single operation to ensure the ultimate ring groove to skirt squareness for better ring seal. Cam and barrel (skirt) profiles that make power but are friendly on the cylinder walls. Manley is well known for their high quality valvetrain components, but insiders also trust and use Manleys top quality pistons and connecting rods.

Features:

Moly Coated Skirt
Lightweight Design
2618 High Strength Alloy
1.2mm Offset Wrist Pin Location for Quiet Start-Ups. Mimics OEM Design
1.5mm, 1.5mm, 3mm Ring Grooves
Perfect Ring Groove to Skirt Squareness
Round Wire Locks Included - .061'' wide
Pressure Balance Groove
Premium Chrome Moly Wrist Pin 22mm Diameter x 2.500'' Long x .150'' Wall
Full Banded Skirt Design for Increased Skirt Stability

Piston Common Specs:
Dome Volume: 0cc Flat Top
Crown Thickness: .185''
Ring Thickness: Top Ring - 1.5mm (.220'' down); Second Ring - 1.5mm; Oil Ring - 3mm
Pin Included: Premium Chrome Moly 22mm dia., 2.500'' long, .150'' wall
Spiral Locks: .061'' wide
Recommended Piston Clearance: .003'' measured .850'' from bottom of the oil ring
